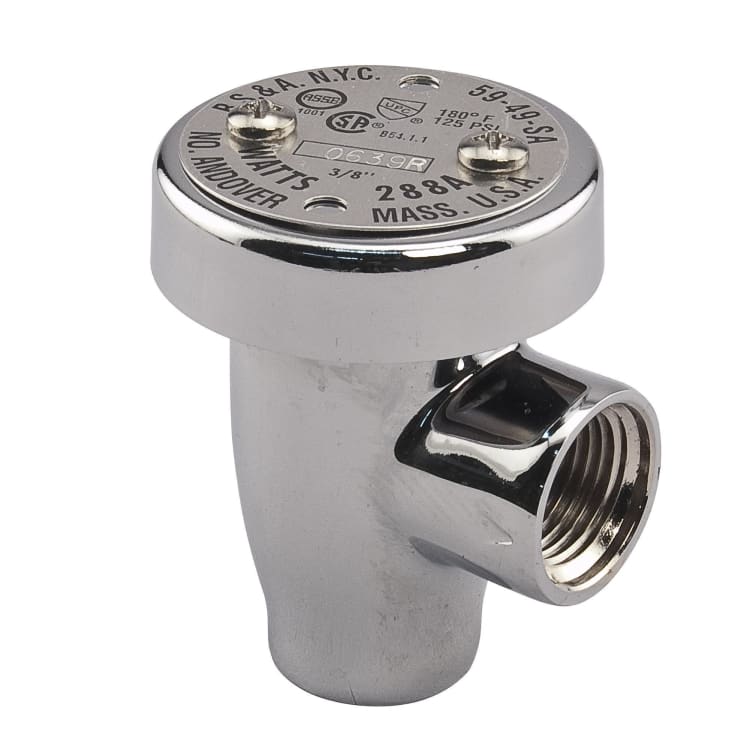

WATTS® LF288A Lead Free Hot or Cold Water Anti-Siphon Vacuum Breaker, 1/2 in, 125 psi, Brass

1185975 MFG #: 0792052
/ ea

WATTS® Anti-Siphon Vacuum Breaker, Hot or Cold Water, Series: LF288A, 1/2 in Nominal Size, 125 psi Working, Brass Body, Polished Chrome

Series LF288A Lead Free* Hot or Cold Water Anti-Siphon Vacuum Breakers prevent the reverse flow of polluted water from entering into the potable water supply due to backsiphonage. It consists of Lead Free* brass body construction (LF288A) or chrome finish (LF288AC), chemical resistant silicone seat disc and an atmospheric vent to prevent spilling. Series LF288A has a full size orifice to assure pipe size capacity and maximum flow. It is ideal for low flow, non-continuous hot or cold water health hazard installations such as on laboratory equipment. Maximum Pressure:125 psi (8.6 bar).

QTY
  • Features
  • Lead Free brass body
  • Full size orifice for maximum flow
  • Lightweight disc assembly prevents spilling under all rates of flow
  • 1/4 to 3/4 in (8 to 20 mm) with lead free brass body
  • Silicone disc
  • 180 deg F
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
  • This device shall not be subjected to continuous pressure for more than twelve (12) hours per ASSE Std. 1001
  • For continuous pressure application, specify Watts Series LF800 pressure type vacuum breakers
  • Vacuum breakers are not designed, tested or approved to protect against backpressure backflow
  • For protection against backpressure backflow, install Watts Series LF909 or Series LF009 reduced pressure principle backflow preventers
  • Standard/Approvals: ANSI A112.1.1, ASSE 1001, CSA B64.1.1, UPC Listed
  • WARRANTY: Limited
