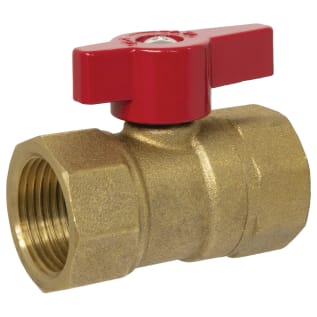

Webstone 22564 Gas Ball Valve, 1 in, IPS, Brass Body
Webstone, 22564, Gas Ball Valve, Standard, Series: 2256, 1 in Nominal, FNPT End Style, Up to 5 psi CWP Pressure, Media: Gas, 3/4 in Orifice, Lever Handle Actuator, 2-5/8 in Inlet to Outlet Length, 2-1/16 in Top to Inlet Center, Forged Brass Body, PTFE Softgoods, Red, Import
- Ball valve with integral spring check saves labor, space, and leak paths
- Blow-out proof stem
- PTFE seat/stem seal/thrust washer
- Control gas with quarter-turn handle
- Standard/Approvals: ANSI 2.21.15/B1.20.1|cCSAus Certified
- WARRANTY: Lifetime
Webstone, 22564, Gas Ball Valve, Standard, Series: 2256, 1 in Nominal, FNPT End Style, Up to 5 psi CWP Pressure, Media: Gas, 3/4 in Orifice, Lever Handle Actuator, 2-5/8 in Inlet to Outlet Length, 2-1/16 in Top to Inlet Center, Forged Brass Body, PTFE Softgoods, Red, Import
Designed for use with natural, manufactured, mixed liquefied petroleum and LP gas/air mixtures. This approved Webstone valve is actuated by a blow-out proof stem. This valve complies with ANSI 2.21.15 for use as a gas appliance connector valve for a 1/2 lb system. Threaded ends comply with ANSI B1.20.1.
- Brand:Â WebstoneActuator Type:Â Lever OperatedBall Material:Â HCP BrassBody Material:Â Forged BrassColor:Â RedEnd Style:Â IPSInlet to Outlet Length:Â 2-5/8Media:Â LP Gas/Air MixtureNominal Size:Â 1Pressure Rating:Â 1/2 to 175 psi WOGSeries:Â 2256Softgoods Material:Â PTFETop to Inlet Center:Â 2-1/16Trim Material:Â Brass Stem and PTFE Seat
Webstone 22564 Gas Ball Valve, 1 in, IPS, Brass Body
Webstone, 22564, Gas Ball Valve, Standard, Series: 2256, 1 in Nominal, FNPT End Style, Up to 5 psi CWP Pressure, Media: Gas, 3/4 in Orifice, Lever Handle Actuator, 2-5/8 in Inlet to Outlet Length, 2-1/16 in Top to Inlet Center, Forged Brass Body, PTFE Softgoods, Red, Import
