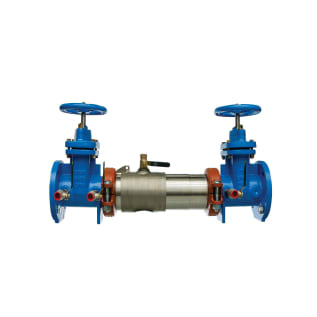

WATTS® 0111522 757 Double Check Valve Assembly, 2-1/2 in Nominal, Resilient Seated Gate Valve, 304 Stainless Steel Body, Domestic
WATTS®, 0111522, Double Check Valve Assembly, Series: 757, 2-1/2 in Nominal, 175 psi Pressure, 33 to 140 deg F, Resilient Seated Gate Valve Ball Valve/Gate Valve, 304 Stainless Steel Body, 30-3/4 in L x 9-3/16 in W Dimensions, Domestic
- Tri-link check valve are removable and serviceable without the use of any special tool
- Ball valve type test cocks
- Extremely compact design
- 70% lighter than traditional designs
- Groove fittings allow integral pipeline adjustment
- Unmatched easy of serviceability
- Replaceable check disc rubber
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Bronze body nickel plated test cocks
- Standard/Approvals: Approved By The Foundation For Cross-Connection Control And Hydraulic Research At The University Of Southern California|ASSE 1015|AWWA C551-92|CSA B64.5|NSF/ANSI 61-G | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
- INCLUDES: (2) Independent Tri-Link Check Modules Within a Single Housing, Sleeve Access Port, (4) Test Cocks and (2) Drip Tight Shut-Off Valves
- WARRANTY: 1 year Limited
WATTS®, 0111522, Double Check Valve Assembly, Series: 757, 2-1/2 in Nominal, 175 psi Pressure, 33 to 140 deg F, Resilient Seated Gate Valve Ball Valve/Gate Valve, 304 Stainless Steel Body, 30-3/4 in L x 9-3/16 in W Dimensions, Domestic
Series 757 Double Check Valve Assemblies are used to prevent backflow of non-health hazard pollutants that are objectionable but not toxic, from entering the potable water supply system. Series 757 may be installed under continuous pressure service and may be subjected to backpressure and backsiphonage. Series 757 consists of two independently operating check valves, two shutoff valves and four test cocks.
- Brand: WATTS®Ball Valve/Gate Valve type: Resilient Seated Gate ValveBody Material: 304 Stainless SteelDimensions: 30-3/4 in L x 9-3/16 in WDomestic/Import: DomesticNominal Size: 2-1/2Pressure Rating: 175Series: 757Temperature Rating: 33 to 140
WATTS® 0111522 757 Double Check Valve Assembly, 2-1/2 in Nominal, Resilient Seated Gate Valve, 304 Stainless Steel Body, Domestic
WATTS®, 0111522, Double Check Valve Assembly, Series: 757, 2-1/2 in Nominal, 175 psi Pressure, 33 to 140 deg F, Resilient Seated Gate Valve Ball Valve/Gate Valve, 304 Stainless Steel Body, 30-3/4 in L x 9-3/16 in W Dimensions, Domestic
