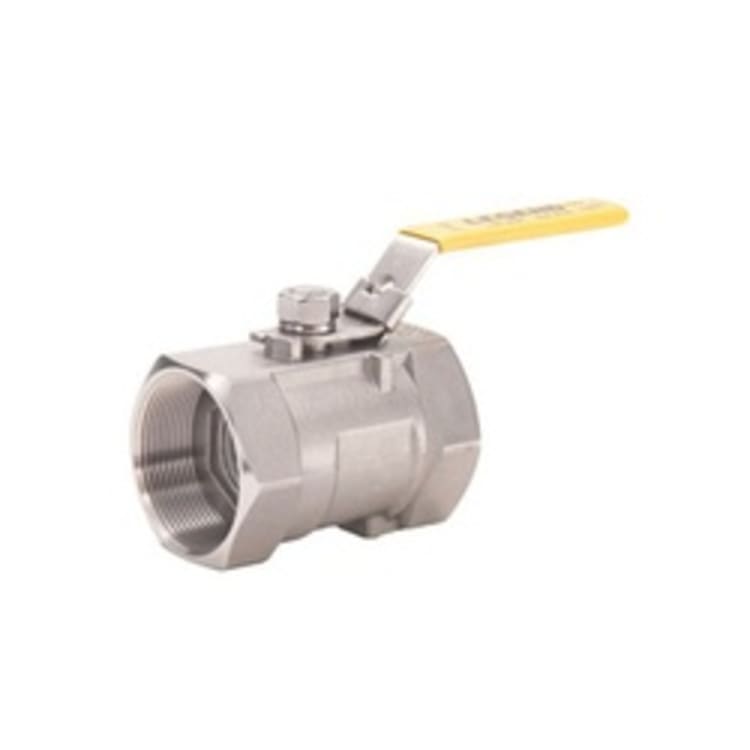

LEGEND 113-124 T-710 Compact 1-Piece Ball Valve, 3/4 in, FNPT, Stainless Steel Body, Conventional Port, Import

262667 MFG #: 113-124
$39.49 / ea
LEGEND 113-124 T-710 Compact 1-Piece Ball Valve, 3/4 in, FNPT, Stainless Steel Body, Conventional Port, Import
  • Actuator Type: Latch Lock Handle
  • Application: For Commercial and Industrial Applications
  • Ball Material: 316 Stainless Steel
  • Body Material: Stainless Steel
  • Brand: LEGEND
  • Domestic/Import: Import
  • End Style: FNPT
  • Inlet to Outlet Length: 2.28 in
  • Manufacturer: Legend
  • Media: Water/Gas/Oil
  • Nominal Size: 3/4 in
  • Port Type: Conventional
  • Pressure Rating: 800 psi
  • Series: T-710
  • Softgoods Material: PTFE Thrust Seat, Washer
  • Top to Inlet Center: 1.85 in
  • Trim Material: 316 Stainless Steel
  • Type: Compact

LEGEND 1-Piece Ball Valve, Compact, Series: T-710, 3/4 in Nominal, FNPT, 800 psi, Conventional Port, Media: Water/Gas/Oil, Latch Lock Handle Actuator, 316 Stainless Steel Ball, 2.28 in Inlet to Outlet Length, 1.85 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel Trim, PTFE Thrust Seat, Washer, Import

Legend offers more than 9,000 products representing 80 plus product classes designed for residential, commercial and industrial applications. Everything you many need for behind the wall, Legend has the most expansive offering of valves, fittings, tubing and components for plumbing and hydronic systems.

QTY
Add to List
  • Features
  • Investment cast stainless steel body/seat retainer, Dupont® PTFE seat retainer seal/thrust washer, 316 stainless steel stem/ball, 304 stainless steel gland bushing/split (lock) washer/handle nut/handle/latch-lock, commercial grade vinyl handle sleeve
  • Equipped with a latch-lock handle
  • Stainless steel ball valves are made using investment casting, which results in less porous and smoother finished castings with greater integrity
  • Bottom loaded Blow-out-proof stem
  • Standard/Approvals: ANSI/ASME B1.20.1, ISO 9002 Certified, MSS SP-110, WW-V-35C
  • WARRANTY: 5/25 Years
