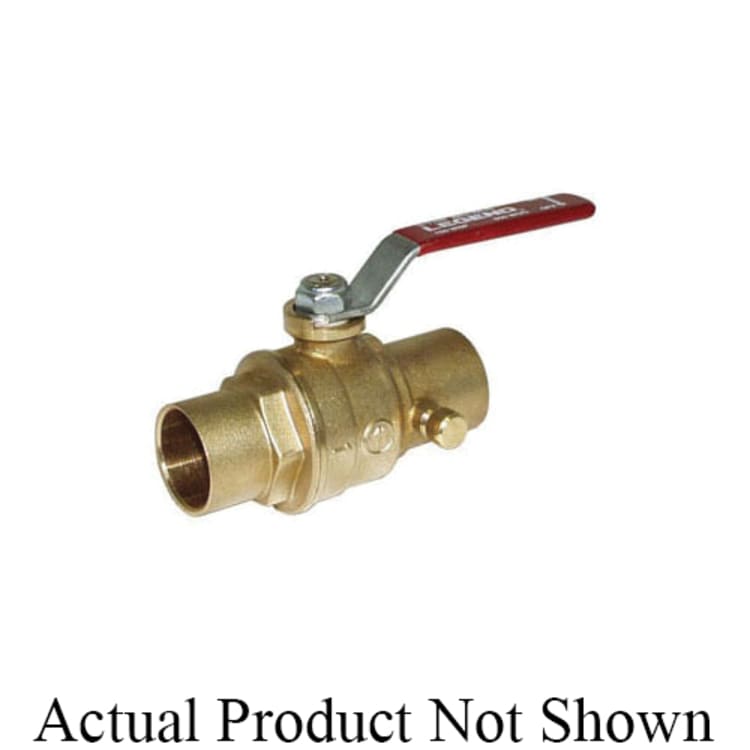

LEGEND 101-514 S-1100 Ball Valve With Drain, 3/4 in, C, Forged Brass Body, Full Port, Import

169846 MFG #: 101-514
$38.48 / ea
LEGEND 101-514 S-1100 Ball Valve With Drain, 3/4 in, C, Forged Brass Body, Full Port, Import
  • Ball Material: 316 Stainless Steel
  • Body Material: Forged Brass
  • Domestic/Import: Import
  • End Style: C
  • Inlet to Outlet Length: 3.15
  • Nominal Size: 3/4
  • Port Type: Full
  • Pressure Rating: 500 psi CWP
  • Series: S-1100
  • Top to Inlet Center: 1.87
  • Trim Material: Polished Chrome Forged Brass Stem and TFM PTFE Seat

LEGEND Ball Valve, Series: S-1100, 3/4 in Nominal, C, 500 psi CWP, Full Port, Handle Actuator, 316 Stainless Steel Ball, 3.15 in Inlet to Outlet Length, 1.87 in Top to Inlet Center, Forged Brass Body, Chrome Plated Forged Brass Trim, TFM PTFE Seat, Import

Maintenance-free, dual FKM O-ring stem design, light weight and durable forged traditional brass body, blow-out proof stem, PTFE seats for improved wear. Ball with drain for maintenance or to prevent freeze. Dacromet® coated steel handle and nut for greater corrosion resistance. Available in sizes and configurations 1/2 to 1 in, FNPT x FNPT and 1/2 to 1 in, Sweat x Sweat.

QTY
Add to List
  • Features
  • Durable forged brass body
  • Bottom-loaded blowout-proof stem
  • Dual O-ring stem seal
  • 3M Dyneon TFM PTFE seats
  • Allows line to be drained for maintenance or to prevent freeze-up
  • Not suitable for steam service
  • Lead free
  • Standard/Approvals: ANSI/ASME B16.18, ASTM B124/124M UNS C37700, ISO 9002
  • WARRANTY: 5 Years
