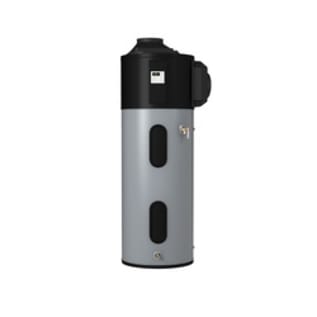

AO Smith® Voltex® 100234178 HPTU-50N Electric Water Heater, 50 gal Tank, 240 VAC, 9000 W, 1 ph, Tall or Short: Tall

1434501 MFG #: 100234178
$3,809.95 / ea
  • Dimensions: 22 in W x 63 in H
  • Series: HPTU-50N
  • Pressure Rating: 150
  • Tank Capacity: 50
  • Voltage Rating: 240
  • Water Connection: 3/4
  • ASME Yes/No: No
  • Energy Factor: 0.93
  • Phase: 1
  • Power Rating: 9000
  • Tall or Short: Tall

AO Smith® Voltex® Electric Water Heater, Series: HPTU-50N, 50 gal Tank, 240 VAC, 9000 W, 1 ph, 3/4 in Water Connection, 0.93 Energy Factor, 150 psi, Tall or Short: Tall, ASME Yes/No: No, 22 in W x 63 in H

The Voltex® hybrid electric heat pump water heater from AO Smith® is the most cost effective energy-efficient option available for consumers who want to save money on their utility bills. Voltex can reduce water heating costs up to 71% and provide payback in 2 to 3 years. With annual savings of $437 or more, there is no better way to go green than Voltex.

  • Features
  • Increased energy efficiency - Improved efficiency designed in, to ensure available hot water at the lowest possible cost, up to a 3.24 Energy Factor (EF) rating conserves energy and meets ENERGY STAR® qualifications
  • Choice of operating modes - Select from efficiency, hybrid or electric modes to match heating requirements to environmental conditions
  • Hybrid mode automatically adjusts between compressor and element, depending upon heat requirements
  • Vacation mode reduces operating costs and provides freeze protection during extended absence
  • Backup electric elements - Long-lasting backup heating elements help heat water according to environmental conditions, demand and the chosen operating mode
  • Coregard™ anode rod - Have a stainless steel core that extends the life of the anode rod allowing superior tank protection for longer than standard anode rods
  • Dry fire protection - Control system checks to ensure the tank is full of water during start up to prevent dry firing the heating elements
  • Electronic user interface - User-friendly electronic interface allows easy control of temperature setting, operating mode and communicates diagnostics
  • Easy to read temperature display (see back) shows temperature in deg F or deg C
  • Advanced diagnostics convey error messages for service purposes and the last four error messages are saved in the control system memory
  • Aluminum anode rod for maximum corrosion protection
  • Standard/Approvals: AHRI Certified|CSA Certified|ENERGY STAR® Qualified|UL Listed
  • WARRANTY: 10 Years Limited
