1365247

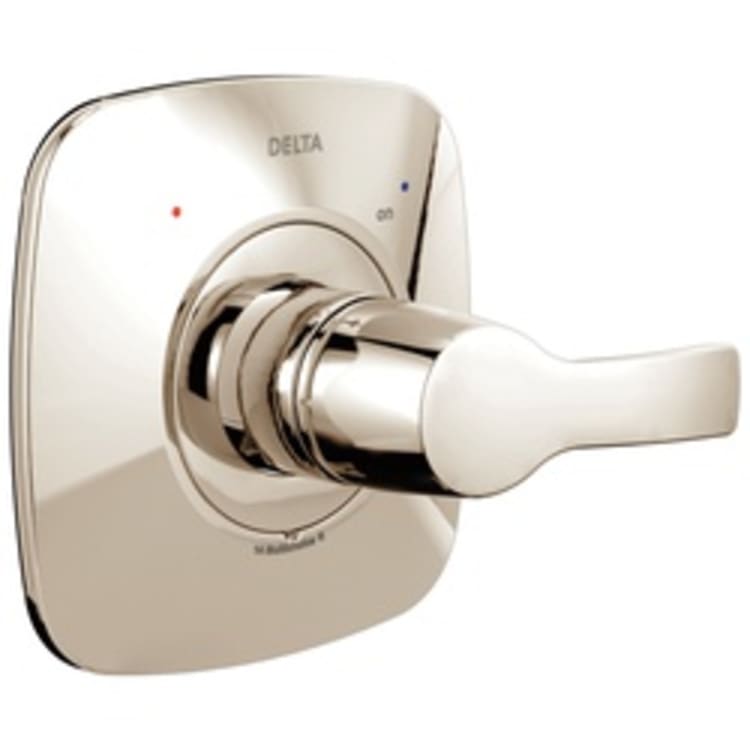

DELTA® T14052-PN Monitor® 14 Valve Trim, 2 gpm Shower, Polished Nickel
Shower/Tub Valves & Trims
MPN: 1365247 3318288 MFG #: T14052-PN
303.80000 / ea

DELTA® Valve Trim, Series: Monitor® 14, Tesla®, 2 gpm Shower Flow, 1 Handles, Lever Handle, 7 in H Trim, Single Function Pressure Balanced Valve/Cartridge, 1 Spray Functions, 80 psi, Wall Mount, For Use With: MultiChoice® R10000 Series Universal Rough-In Valve Body, Brass, Polished Nickel, Domestic

Inspired by the uniquely organic shapes found in nature, the Tesla® Collection lends a spirited sense of the outdoors to any interior.

QTY
  • Features
  • Trim kit only, must order MultiChoice® universal rough-in separately to complete the unit
  • Monitor® pressure balance valve keeps water temperature within a safe +/-3 deg F, helping to protect you from sudden changes in hot or cold water pressure
  • Single lever handle for ease of temperature control
  • Monitor® 14 series pressure balanced single handle mixing valve trim
  • Back-to-back installation capability
  • Solid brass forged body
  • Field adjustable to limit handle rotation into hot water zone
  • 120 deg maximum handle rotation
  • All parts are replaceable from the front of the valve
  • Red/blue pad print temperature indicators on the temperature adjustment diameter
  • Stem extension kit RP77991 can be ordered to allow for an additional 1-3/4 in wall thickness
  • RP77991 ships with chrome escutcheon screws
  • For special finishes also order RP12630 escutcheon screws in desired finish
  • Red/blue indicator
  • Order MultiChoice® rough-in valve separately
  • Standard/Approvals: ADA Compliant, ANSI A117.1, ASME A112.18.1, CSA B125.1, ICC Compliance
  • WARRANTY: Limited Lifetime
