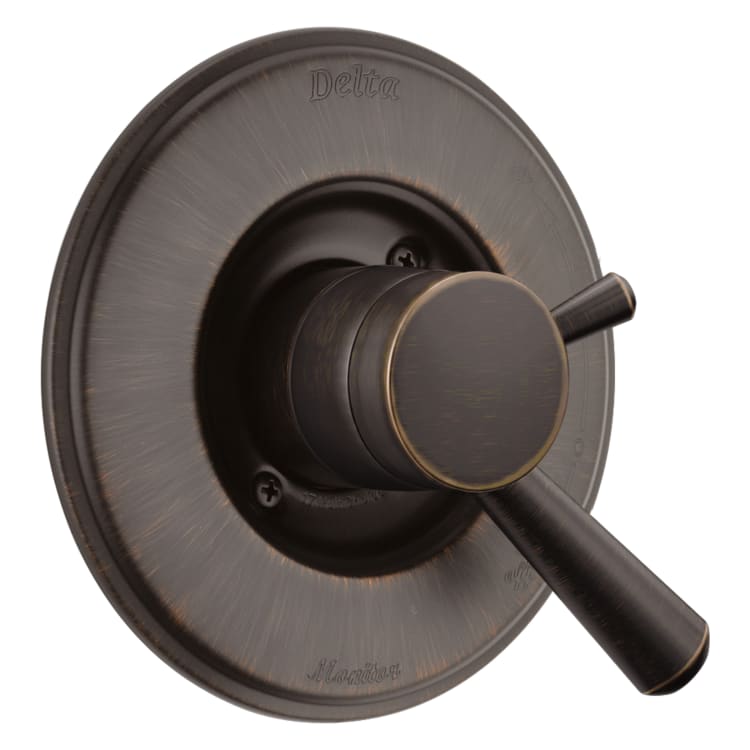

DELTA® T17093-RB Monitor® 17 Linden™ Valve Trim Only, 2 gpm Shower, Venetian Bronze

1315848 MFG #: T17093-RB
$312.05 / ea
DELTA® T17093-RB Monitor® 17 Linden™ Valve Trim Only, 2 gpm Shower, Venetian Bronze
  • Collection: Linden™
  • Domestic/Import: Domestic
  • Finish/Color: Venetian Bronze
  • Handle Type: Lever
  • Material: Brass
  • Mounting Type: Wall
  • Number of Handles: 1
  • Number of Spray Functions: 2
  • Pressure Rating: 80
  • Series: Monitor® 17
  • Shower Flow Rate: 2
  • Suitable For Use With: MultiChoice® R10000 Series Universal Rough-In Valve Body
  • Trim Size: 6-3/8 in Dia
  • Valve/Cartridge Type: 1222 Pressure Balanced

DELTA® Valve Trim Only, Series: Monitor® 17, Linden™, 2 gpm Shower Flow, 1 Handle, Lever Handle, 6-3/8 in Dia Trim, Pressure Balanced Valve/Cartridge, 2 Spray Functions, 80 psi, Wall Mount, For Use With: MultiChoice® R10000 Series Universal Rough-In Valve Body, Brass, Venetian Bronze, Domestic

QTY
Add to List
  • Features
  • Dual function pressure balance control - handle adjusts volume - dial adjusts temperature
  • Monitor® 17 series pressure balanced bath mixing valve trim
  • Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
  • Back-to-back installation capability
  • Lever volume control handle temperature adjustment dial
  • Field adjustable to limit handle rotation into hot water zone
  • Maximum dial rotation adjustable between 90 and 180 deg
  • All parts are replaceable from the front of the valve
  • Standard/Approvals: ASME A112.18.1, CSA B125.1, ASSE 1016, Compliance to ICC/ANSI A117.1 - Valve control
