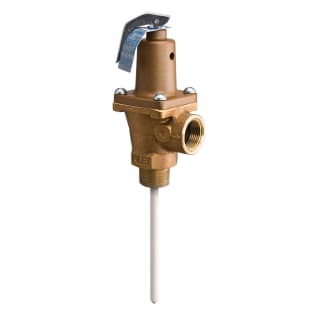

WATTS® 0556007 LF40L Automatic Reseating Temperature/Pressure Relief Valve, 1 in Nominal, MNPT x FNPT End Style, 125 psi Pressure, Brass Body, Domestic
WATTS®, 0556007, Temperature/Pressure Relief Valve, Automatic Reseating, Series: LF40L, 1 in Nominal, MNPT x FNPT End Style, 125 psi Pressure, 210 deg F, Media: Water, Brass Body, 2-3/4 in W x 6-1/4 in H Dimensions, Domestic
- Lead free cast brass construction
- Non-mechanical seat-to-disc alignment
- Tamper resistant bonnet screws
- Series 3/4 in LF40, LF140 and 1 in LF40 feature a unique thermostat with a special thermo-bonded coating
- Series 1 in LF140 are furnished with stainless steel thermostat tube
- Series LFN240, LF340 and LF342 are furnished with stainless steel thermostat tube
- 75, 100, 125 and 150 psi standard setting
- Inquire with governing authorities for local installation requirements
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Standard/Approvals: ANSI Z21.22|ASME Section IV|CSA Certified|MIL-V-136-12D|SA® Certified | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
- WARRANTY: Limited
WATTS®, 0556007, Temperature/Pressure Relief Valve, Automatic Reseating, Series: LF40L, 1 in Nominal, MNPT x FNPT End Style, 125 psi Pressure, 210 deg F, Media: Water, Brass Body, 2-3/4 in W x 6-1/4 in H Dimensions, Domestic
Series LF40L, LF40XL Automatic Reseating Temperature and Pressure Relief Valves are used in commercial water heater applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters. They feature a Lead Free* brass body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, tamper-resistant bonnet screws, automatic reseating feature, and test lever. Model LF40L has a short thermostat for installation directly in available tank tapings. Model LF40XL has an extension thermostat for installation in the hot water outlet within the allowable distance from the top of the tank. Series LF40L, LF40XL valves are ASME rated and CSA listed. Temperature Relief: 210 deg F (99 deg C), Pressure Range: 75 to 150psi (5.2 to 10.3 bar), Standard Pressure Settings: 75, 100, 125, or 150psi (5.27, 7.03, 8.79, or 10.55 bar).
- Brand: WATTS®Body Material: BrassDimensions: 2-3/4 in W x 6-1/4 in HDomestic/Import: DomesticEnd Style: MNPT x FNPTMedia: WaterNominal Size: 1Pressure Rating: 125Series: LF40Temperature Rating: 210Type: Automatic Reseating
