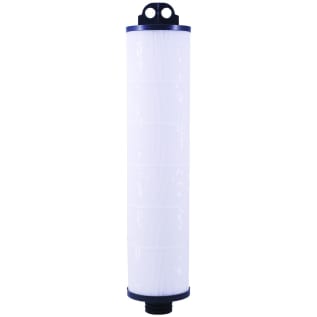

WATTS® 7100304 PWWJC Big Bubba Jumbo Pleated Filter Cartridge, 15.4 in W x 42.7 in H, Polypropylene

1183001 MFG #: 7100304
$246.01 / ea

WATTS® Filter Cartridge, Big Bubba Jumbo Pleated, Series: PWWJC, 15.4 in Dia, 15.4 in Width, 42.7 in Height, Polypropylene

This Watts jumbo 5 micron pleated sediment cartridge is ideal for critical applications offering greater efficiency and more surface area for a greater throughput with a reduced cost. It is rated for temperatures up to 175 deg F and the maximum water pressure of 30 psi. The filter has excellent chemical resistance and features dual O-rings for superior sealing.

  • Features
  • 5 micron filtration rating
  • Reduces extra-fine dirt, sand, sediment, silt, rust particles, scale particles
  • Greater efficiency with more surface area
  • Dual O-rings for superior sealing
  • Filter housings are made of rugged, glass-reinforced polypropylene with brass reinforced gauge port so they won't chip, rust or dent
  • WATTS® jumber filters are an economical alternative to costly stainless steel filtration equipment
  • Pleated, for flow rates up to 150 GPM using 100% cellulose free media (5 micron and up are cleanable)
  • Low cost melt blown for depth filtration
  • Activated carbon removes chlorine tastes, odors and sediment, ideal for whole house treatment to 15 GPM offering 140,000 gallon capacity
  • Pleated filter cartridges for watts jumbo filter cartridge housing
  • Glass reinforced PP body
  • 1/4 in FNPT brass reinforced gauge port
  • 304 stainless steel swing bolts
  • EPDM O-ring
  • 2 in slip PVC female pipe fitting
  • 125 deg F maximum temperature
  • 125 psi maximum working pressure
  • 150 gpm maximum flow rate
  • Standard/Approvals: ASSE Listed, FM/NSF Approved, UL/ULC Listed, USC Certified, WQA Certified
  • WARRANTY: Limited
