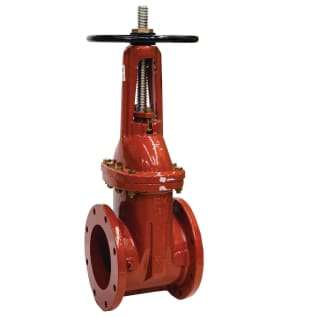

WATTS® 0702330 408 Straight Gate Valve, 8 in Nominal, Flanged End Style, Cast Iron Body, Cross Handle Actuator, Domestic
WATTS®, 0702330, Gate Valve, Straight, Series: 408, 8 in Nominal, Flanged End Style, 250 psi Pressure, 60 to 140 deg F, Full Port, Cross Handle Actuator, 11-1/2 in Inlet to Outlet Length, 37-3/4 in Top to Inlet Center, Cast Iron Body, Buna-N® O-Ring Softgoods, 14 in Diameter Hand Wheel, Epoxy Coated, Domestic
Documents
- Encapsulated resilient wedge
- Outside stem and yoke
- Low head loss
- Fusion bonded coating, internal and external
- Easy in-line service
- Replaceable disc
- Boss tapped and plugged
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Rising stem
- Bronze stem shaft
- Flanged connections
- Standard/Approvals: ASSE Listed|ASTM A126 Class B Body/Handwheel|AWWA C509|FM Approved|MSS-SP-70|NSF Approved|UL Listed|ULC Listed|USC Certified|WQA Certified | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
- WARRANTY: Limited
WATTS®, 0702330, Gate Valve, Straight, Series: 408, 8 in Nominal, Flanged End Style, 250 psi Pressure, 60 to 140 deg F, Full Port, Cross Handle Actuator, 11-1/2 in Inlet to Outlet Length, 37-3/4 in Top to Inlet Center, Cast Iron Body, Buna-N® O-Ring Softgoods, 14 in Diameter Hand Wheel, Epoxy Coated, Domestic
This OSY flanged gate valve, WATTS® 8 in model 408-OSY-RW, is used in fire protection applications in fire main shutoff applications. It features an epoxy coated cast iron body with flanged connections, resilient wedge disc, and cast iron handwheel. It is UL/FM listed and complies with MSS-SP-70. The maximum pressure is 250 PSI (17 bar) CWP.
- Brand: WATTS®Actuator Type: Cross HandleBody Material: Cast IronDomestic/Import: DomesticEnd Style: FlangedFinish: Epoxy CoatedHand Wheel Diameter: 14Inlet to Outlet Length: 11-1/2Nominal Size: 8Port Type: FullPressure Rating: 250Series: 408Softgoods Material: Buna-N® O-RingTemperature Rating: 60 to 140Top to Inlet Center: 37-3/4Type: Straight
