A.Y. McDonald

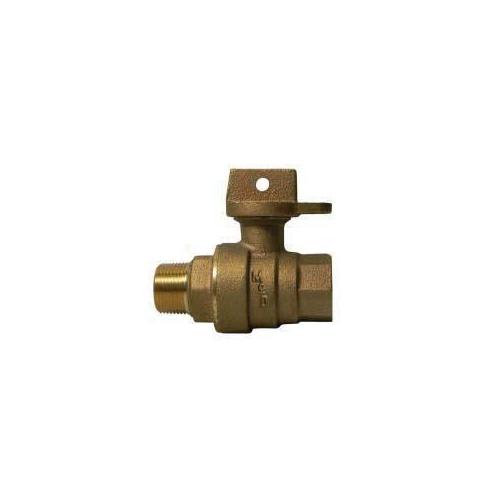

McDonald® 76107W 1" Ball Curb Stop With Lockwing, 1 in, FNPT x MNPT

1115284 MFG #: 5132-222
$185.68 / ea
  • Ball Material: Brass
  • Dimensions: 1 in Dia
  • End Style: MNPT x FNPT
  • Inlet to Outlet Length: 4.21
  • Media: Water
  • Nominal Size: 1
  • Pressure Rating: 300
  • Series: 76107W
  • Softgoods Material: EPDM
  • Top to Inlet Center: 2.64
  • Trim Material: EPDM Port Seal

McDonald® Ball Curb Stop, Series: 76107W, 1 in Nominal, FNPT x MNPT, 300 psi, Media: Water, Brass Ball, 4.21 in Inlet to Outlet Length, 2.64 in Top to Inlet Center, EPDM Port Seal, O-Ring, 1 in Dia

A.Y. McDonald Ball Valve Curb Stops maintain their low turning torques and bubble-tight 300 PSIG water pressure rating due to the PTFE coated brass ball that is supported by two blow-out proof EPDM seals. The end piece joint is sealed with an EPDM O-ring and thread locker. Mc Donald Ball Curb Stops offer positive shut-off from either direction and are available with a wide variety of end connections or Minneapolis Curb Box Threads. A brass 2 in square operating head that is easily pinned to existing curb stops is available separately.

QTY
  • Features
  • End piece joint sealed with an EPDM o-ring and thread locker
  • PTFE coated brass ball
  • No lead
  • Standard/Approvals: ANSI/AWWA C800, ASTM B62/B584, NSF/ANSI 61/372, UNS C83600-85-5-5-5/C89833
