WATTS® 0004646 A2 Series Automatic Shutoff Valve, 1/2 in Nominal, 120 VAC, Leak Sensor, Domestic
WATTS®, 0004646, Shutoff Valve, Automatic, Series: A2 Series, 1/2 in Nominal, 150 psi Pressure, 120 VAC, 15 A, Leak Sensor, Power Cord, Polysulfone Body, 180 deg F, 8-1/2 in H x 4-1/4 in L Dimensions, Domestic
- Turns off water supply to washing machine when a leak is detected
- De-pressurizes hoses when washing machine is not in use
- The new Intelliflow Models A2C-M1 and A2C-WB-M1 also include a leak senso5r
- 20 A circuit breaker requirement
- Replaceable internal strainer screen
- Electronic control device senses the washing machine current flow
- Maximum pressure 150 psi
- Helps prevent floods from burst washing machine hoses
- Upon detection of water at the sensor, the IntelliFlow automatically shuts off the water supply to the washing machine
- Silent reliable operation
- The water sensor is placed on the floor behind the washing machine
- Easy installation
- This provides an additional level of security, should a hose burst while the washing machine is in operation
- Standard/Approvals: ATNZ.E164904|ATNZ7.E164904 Listed|cULUS Listed
WATTS®, 0004646, Shutoff Valve, Automatic, Series: A2 Series, 1/2 in Nominal, 150 psi Pressure, 120 VAC, 15 A, Leak Sensor, Power Cord, Polysulfone Body, 180 deg F, 8-1/2 in H x 4-1/4 in L Dimensions, Domestic

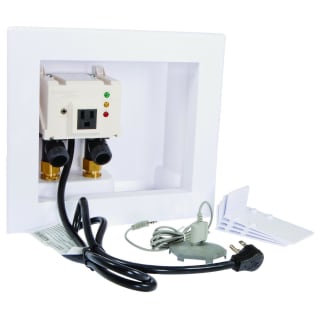

Series A2C-WB Wall Box IntelliFlow Automatic Washing Machine Water Shutoff Valves with Leak Sensor are used in residential applications to protect against catastrophic water damage from a burst inlet hose connected to a washing machine in use or unattended. The Series A2C-WB IntelliFlow senses when the washing machine is on or off, and then opens or closes the hot and cold inlet valves as needed to allow or prevent water from flowing to the washer. If the Series A2C-WB detects a leak, current flow to both the hot and cold water valves are immediately interrupted and closed. It consists of an electrical three-prong outlet to receive a washing machine power cable, wall box, leak sensor, a power cord, and a replaceable internal strainer screen. Maximum Pressure: 150psi (10 bar).
- Brand: WATTS®Amperage Rating: 15Cord Type: PowerDimensions: 8-1/2 in H x 4-1/4 in LNominal Size: 1/2Pressure Rating: 150Sensor Type: LeakSeries: A2 SeriesTemperature Rating: 180Voltage Rating: 120Domestic/Import: Domestic
WATTS® 0004646 A2 Series Automatic Shutoff Valve, 1/2 in Nominal, 120 VAC, Leak Sensor, Domestic
WATTS®, 0004646, Shutoff Valve, Automatic, Series: A2 Series, 1/2 in Nominal, 150 psi Pressure, 120 VAC, 15 A, Leak Sensor, Power Cord, Polysulfone Body, 180 deg F, 8-1/2 in H x 4-1/4 in L Dimensions, Domestic
