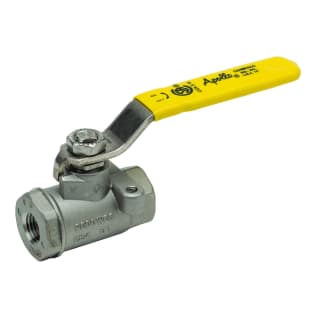

Apollo™ 7610427A 76-100 2-Piece Ball Valve, 3/4 in Nominal, FNPT End Style, 250 lb, Stainless Steel Body, Standard Port, MPTFE/PTFE Softgoods, Domestic

1092729 MFG #: 7610427A
$180.64 / ea
Apollo™ 7610427A 76-100 2-Piece Ball Valve, 3/4 in Nominal, FNPT End Style, 250 lb, Stainless Steel Body, Standard Port, MPTFE/PTFE Softgoods, Domestic
  • Actuator Type: Lever-Lock Handle
  • Ball Material: 316 Stainless Steel
  • Body Material: Stainless Steel
  • Domestic/Import: Domestic
  • End Style: FNPT
  • Inlet to Outlet Length: 2.96
  • Nominal Size: 3/4
  • Port Type: Standard
  • Pressure Rating: 150
  • Series: 76-100
  • Softgoods Material: MPTFE/PTFE
  • Top to Inlet Center: 2.03
  • Trim Material: 316 Stainless Steel/RPTFE
  • Type: 2-Piece

Apollo™, 7610427A, Ball Valve, 2-Piece, Series: 76-100, 3/4 in Nominal, FNPT End Style, 150 psi Pressure, 250 lb Pressure Class, Standard Port, Lever-Lock Handle Actuator, 316 Stainless Steel Ball, 2.96 in Inlet to Outlet Length, 2.03 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel/RPTFE Trim, MPTFE/PTFE Softgoods, Domestic

QTY
Add to List
  • Features
  • Videos
  • Investment cast components
  • Reinforced seat
  • Mounting pad for easy actuator mounting
  • Blow-out proof stem design
  • Vacuum service to 29 in Hg
  • 2000 psig CWP
  • 304 stainless steel with vinyl grip handle
  • A276-316 stainless steel gland nut/stem
  • 18-8 stainless steel lever nut
  • Standard/Approvals: ASTM A351 CF8M Body|ASTM A276 316 Ball/Stem|MSS SP-110|MR0103 (2012)|NSF/ANSI 61-8|Annex G|NACE MR0175 (2000) and NSF 372|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
  • INCLUDES: Adjustable Packing Gland, Mounting Pad, Stainless Steel Latch-Lock Lever, Nut
  • WARRANTY: 5 Years
