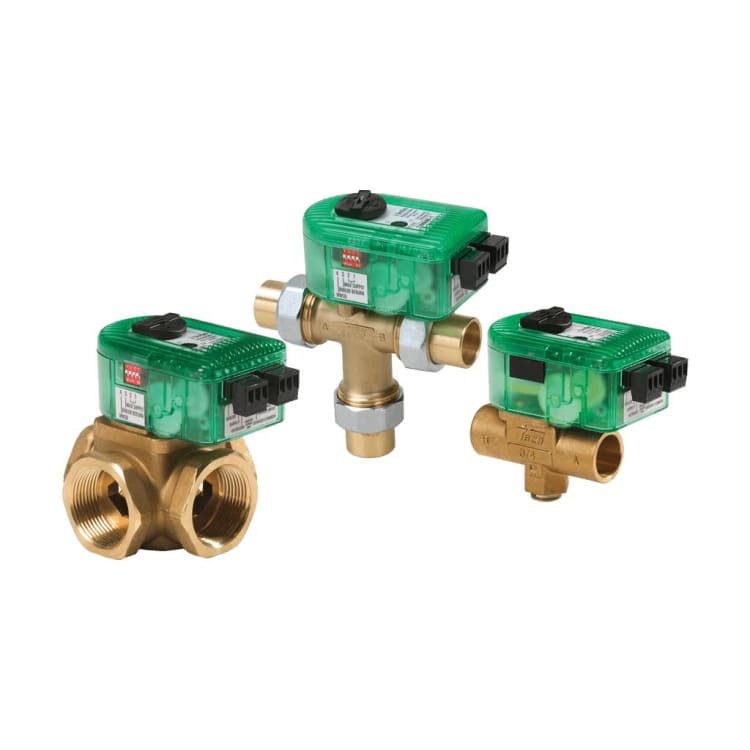

Taco® i075C3R-1 I Series Mixing Valves, 3/4 in Nominal, Sweat End Style, 125 psi Pressure, 3.3 Cv Flo

275104 MFG #: i075C3R-1
$1,013.00 / ea
Taco® i075C3R-1 I Series Mixing Valves, 3/4 in Nominal, Sweat End Style, 125 psi Pressure, 3.3 Cv Flo

Taco®, i075C3R-1, Mixing Valves, Series: I Series, 3/4 in Nominal, Sweat End Style, 125 psi Pressure, 20 to 240 deg F at 135 deg ambient, 3.3 Cv Flow, Media: Water/Glycol, Outdoor Reset Actuator, 4-7/8 in H x 2-3/8 in W x 2-5/8 in D Dimensions

QTY
Add to List
  • Features
  • 2-way Injection, 3-way or 4-way Mixing
  • Operates Off Constant Power or Relay End Switch
  • Ball Valve Design, High Cv
  • Manual Operation Button
  • Solid State Microprocessor Design
  • Compact Design
  • Easy, One-handed Actuator Removal
  • Plug-in Low Voltage Connections
  • Multi-Status LED Indicator Light
  • Fail Safe Mode
  • Selectable Maximum Supply Temperature(110 deg F, 130 deg F, 150 deg F, or Off )
  • Selectable Minimum Supply Temperature( 85 deg F, when Maximum supply temperature isset to 150 deg F or Off )
  • Adjustable Minimum Boiler Return Temperature (120 deg F, 135 deg F, or Off )
  • Warm Weather Shutdown (70 deg F or Off )
  • Adjustable Heating Curve (0.2-2.2 Reset Ratio)
  • Adjustable Setpoint Dial (80 deg F to 180 deg F)
  • Selectable 15 deg F Setback
  • Optional Boiler Protection (Set at 135 deg F)
  • INCLUDES: Outdoor Sensor and System Supply Sensor
