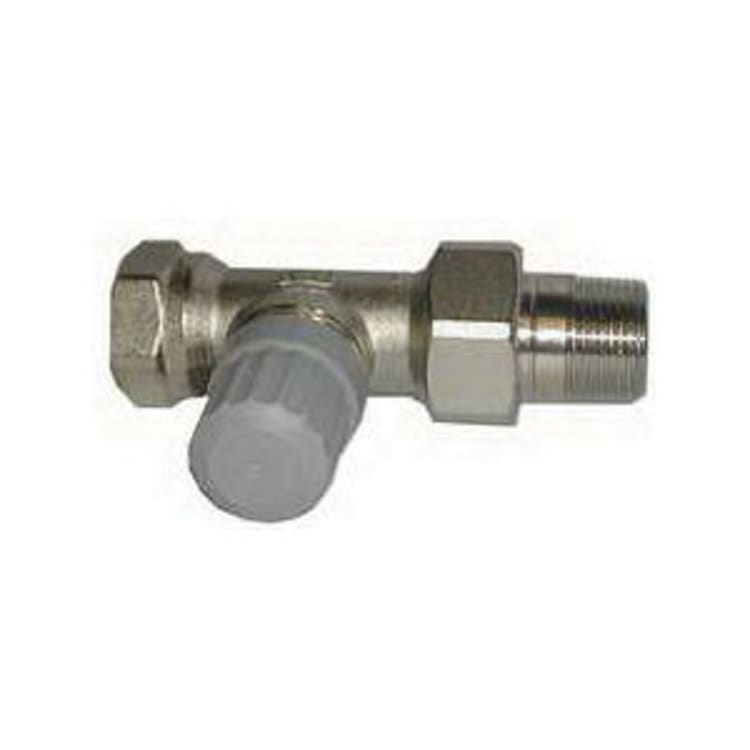

Danfoss 013G8020 RA 2000 Straight Thermostatic Radiator Valve, 3/4 in, FNPT x MNPT, 145 psi (Static)/232 psi (Test), Brass

17908 MFG #: 013G8020
$81.33 / ea
Danfoss 013G8020 RA 2000 Straight Thermostatic Radiator Valve, 3/4 in, FNPT x MNPT, 145 psi (Static)/232 psi (Test), Brass
  • Body Material: Brass
  • End Style: MNPT x FNPT
  • Finish: Nickel Plated
  • Nominal Size: 3/4
  • Pressure Rating: 145 psi (Static)/232 psi (Test)
  • Series: RA 2000
  • Softgoods Material: EPDM Disc, Seat Washer O-Ring
  • Temperature Rating: 250
  • Type: Straight

Danfoss Thermostatic Radiator Valve, Straight, Series: RA 2000, 3/4 in Nominal Size, FNPT x MNPT, 145 psi (Static)/232 psi (Test), 250 deg F, Brass Body, EPDM Disc, Seat Washer O-Ring, Nickel Plated

RA 2000 Thermostatic Radiator Valves regulate the flow of hot water or low pressure steam through free-standing radiators, baseboards or convectors in hot water and two-pipe steam systems. Operators and valves are packaged separately to allow an installer to select a suitable combination for each application.

QTY
Add to List
  • Features
  • Valve bodies are designed to meet the demands of the residential, commercial and industrial sectors
  • 140 deg F max sensor temperature
  • 15 psi maximum differential pressure (water)
  • 45 to 86 deg F adjustable temperature range
  • RA 2000 valves are fitted with a packing gland assembly that is replaceable while the system is in operation
  • Sturdy EPDM rubber valve disc provides a seal against the valve seat at differential pressures of up to 15 PSI in hot water heating systems, while 15 psig for low pressure steam systems
  • Manual plastic cap supplied to protect the valve pushpin and provide manual control of the valve during installation
  • If manual operation is required, a separate version of manual knob is available
  • Valves remain normally open with no operator mounted
  • 2.7 CV
  • FPT x MPT union tailpiece connection
  • Standard/Approvals: Conforms to ASHRAE/ANSI Standard 102-1983
