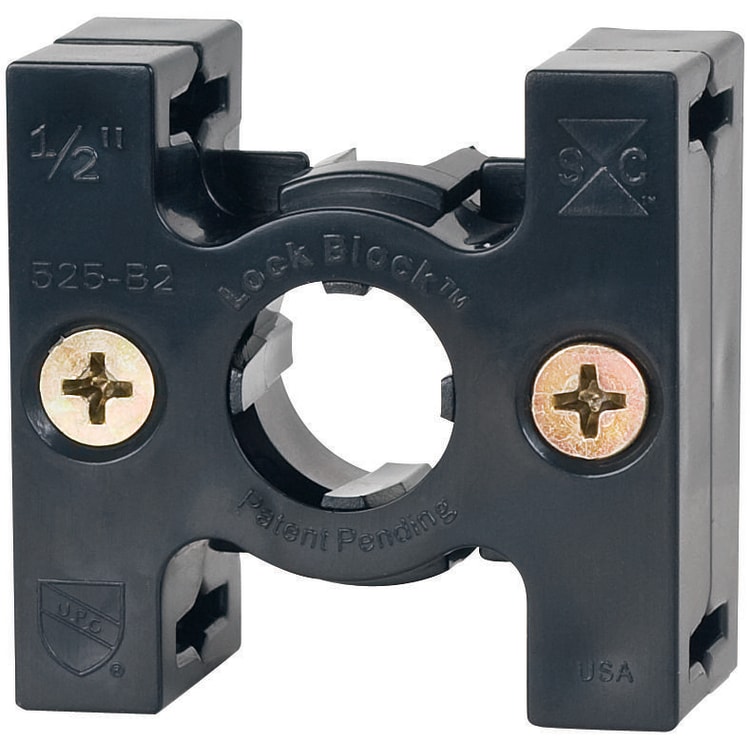

Sioux Chief StrongArm™ LockBlock™ 525-B2 Bracketing System With Screws, 1/2 in Pipe/Tube, 25 lb, 7/8 in W x 1-3/4 in H, Steel, Galvanized, Domestic
- Dimensions: 7/8 in W x 1-3/4 in H
- Domestic/Import: Domestic
- Load Capacity: 25
- Material: ABS
- Series: 525
- Temperature Rating: 140
- Color: Black
- Mounting Type: Screw
Sioux Chief StrongArm™ LockBlock™ Bracket, Series: 525, 25 lb, ABS, Black, Screw Mount, 7/8 in W x 1-3/4 in H, 140 deg F, Domestic
Sioux Chief 525 series StrongArm™ with LockBlock™ pre-assembled bracketing system shall be used where necessary for securing CTS water supply stub outs when penetrating a wall. Bracket shall be corrosion resistant with twisted ends to mount to the surface either a wood or metal stud wall. System shall include approved hardware for fastening brackets to stud wall. System shall include slidable, plastic block device to position and secure CTS stub out at any desired location. Each block shall include two screws for tightening. When screws on blocks are tightened, compression of blocks prevents lateral movement on brackets and simultaneously compresses on tube to prevent stub out movement. LockBlocks shall be compatible with copper, CPVC, or PEX tube. Optional flame rated blocks comply to UL94-VO standards.
- Features
- Videos
- Rigidly secure any 1/2 to 1 in CTS stub out and prevent all movement
- Twisted brackets easily mount to the face of the stud and L-bent brackets mount inside the stud cavity
- LockBlocks™ compress on tube and brackets after screws are tightened
- Standard/Approvals: cUPC Compliant|UL94-VO|PROP65: This product can expose you to chemicals including styrene and toulene, which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
- INCLUDES: #6 x 1 in Coarse Thread, Zinc Plated Screws
