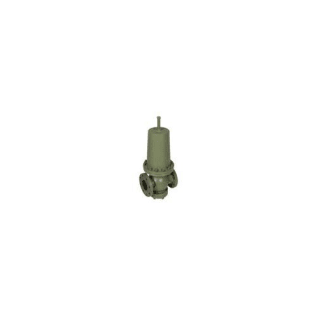

WATTS® 0681040 Direct Operated Pressure Reducing Valve, 3 in Nominal, Flanged End Style, 30 to 80 psi Pressure, Cast Iron Body, Domestic
WATTS® Pressure Reducing Valve, Direct Operated, 3 in Nominal, Flanged, 30 to 80 psi, 150 deg F, Media: Water, 10 in Inlet to Outlet Length, 21-3/4 in Top to Inlet Center, Cast Iron Body, Stainless Steel Trim, Hycar Diaphragm, Domestic
- For dead end service where supply flow is intermittent and changes rapidly such as flush valve service
- Designed to close against flow for smooth operation
- An essentially balanced single seat minimizes variation in delivery pressure resulting from varying inlet pressure
- Packless design eliminates stuffing box friction
- Hycar composition single seat provides for dead end shutoff and prevents pressure creep when no flow is required
- Disc and piston are located to minimize the possibility of obstruction by dirt
- Self-contained design, requires no control lines
- All internal parts accessible by removing blind flange or spring chamber
- Regular maintenance can be performed with the valve body in line
- No stuffing box maintenance required
- Hycar diaphragm and disc ensures responsive service and long service life
- Standard/Approvals: ISO 9001-2008 Certified
- WARRANTY: 1 year Limited
WATTS® Pressure Reducing Valve, Direct Operated, 3 in Nominal, Flanged, 30 to 80 psi, 150 deg F, Media: Water, 10 in Inlet to Outlet Length, 21-3/4 in Top to Inlet Center, Cast Iron Body, Stainless Steel Trim, Hycar Diaphragm, Domestic
Series 2300 Direct Operated Water Pressure Reducing Valves are used in commercial and industrial applications to regulate the flow of water to dead-end services where the flow is intermittent and changes rapidly, such as to flush meters, snap cocks, and for locations where city water pressure needs to be reduced to supply plumbing fixtures. It consists of an iron body construction with Stainless Steel trim, Hycar composition disc, piston, Hycar diaphragm, tempered steel spring, and a single seat. Series 2300 is self-contained, self-aligning, and in-line serviceable with all internal parts accessible. The pressure-balanced design eliminates water hammer, pressure fluctuations, and pressure creep. It is ideal for use in industrial plants for washrooms and processing operations, apartment buildings, hotels, office buildings, hospitals, municipal and plant water mains.
- Brand: WATTS®Body Material: Cast IronDomestic/Import: DomesticEnd Style: FlangedInlet to Outlet Length: 10Media: WaterNominal Size: 3Pressure Range: 30 to 80Series: 2300Softgoods Material: Hycar DiaphragmTemperature Rating: 150Top to Inlet Center: 21-3/4Trim Material: Stainless SteelType: Direct Operated
