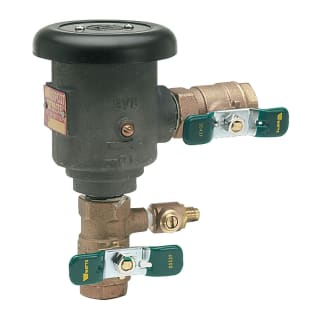

WATTS® 0792024 LF008PCQT Anti-Siphon Spill-Resistant Vacuum Breaker, 1/2 in, FNPT, Cast Copper Silicon Alloy Body

1222159 MFG #: 0792024
/ ea

WATTS® Lead Free Vacuum Breaker, Anti-Siphon Spill-Resistant, Series: LF008PCQT, 1/2 in Nominal, FNPT, 150 psi, 33 to 180 deg F, Cast Copper Silicon Alloy Body, 5-1/2 in H

Series LF008PCQT Lead Free Anti-Siphon, Spill-Resistant, Vacuum Breakers prevent the reverse flow of polluted water from entering into the potable water supply due to backsiphonage on indoor point-of-use applications. It consists of a Lead Free cast copper silicon alloy body construction, thermoplastic check and float assembly valve, stainless steel springs, tee handles, and a molded diaphragm separating the air inlet from the potable water supply to prevent spillage. Series LF008PCQT is ideal for indoor use on machines or equipment in general plumbing applications. Maximum Working Pressure: 150 psi (10.34 bar), Minimum Working Pressure: 8 psi (55.2 kPa).

QTY
  • Features
  • Standardly supplied with internal polymer coating
  • Modular cartridge for ease of service
  • Vent uses an O-ring for reliable operation
  • Compact space saving design
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
  • Ball valve shutoffs
  • Standard/Approvals: ASSE 1056, cCSAus B64.1.2, ISO 9001-2008, IAPMO Listed
  • WARRANTY: 1 Year Limited
