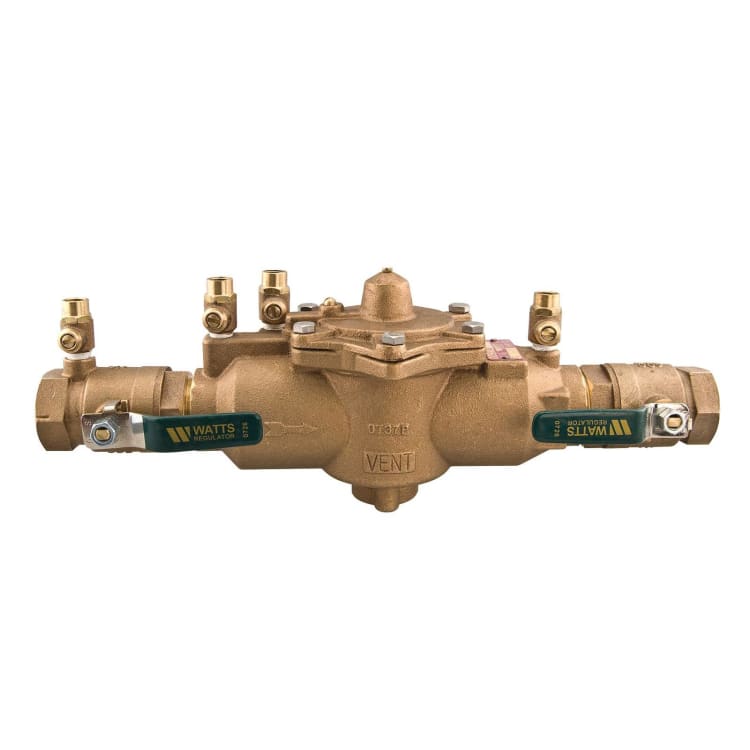

WATTS® LF009 Lead Free Reduced Pressure Zone Assembly, 1-1/2 in, NPT, Copper Silicon Alloy, Domestic

1146214 MFG #: 0391006
/ ea

WATTS® Reduced Pressure Zone Assembly, Lead Free, Series: LF009, 1-1/2 in Nominal Size, NPT, 175 psi, 33 to 180 deg F, Full Port, Copper Silicon Alloy Body, 17-7/8 in L, Domestic

Series LF009 Lead Free Reduced Pressure Zone Assemblies prevent the reverse flow of polluted water from entering into the potable water supply due to back siphonage and or backpressure. It consists of Lead Free bronze body construction (1/4 to 2 in) or Lead Free FDA approved epoxy coated cast iron (2-1/2 to 3 in), two, in-line independent check valves, replaceable check seats with an intermediate relief valve, and ball valve test cocks. Series LF009 is ideal for protection of health hazard cross-connections or for containment at the service line entrance. Check with local water authorities for installation requirements.

QTY
  • Features
  • Single access cover and modular check construction for ease of maintenance
  • Top entry all internals immediately accessible
  • Captured springs for safe maintenance
  • Internal relief valve for reduced installation clearances
  • Replaceable seats for economical repair
  • Lead free cast copper silicon alloy body construction for durability 1/4 to 2 in
  • Fused epoxy coated cast iron body 2-1/2 to 3 in
  • Ball valve test cocks: screwdriver slotted 1/4 to 2 in
  • Large body passages provides low pressure drop
  • Compact, space saving design
  • No special tools required for servicing
  • Lead free cast copper silicon alloy body construction, silicone rubber disc material in the first and second check plus the relief valve, replaceable polymer check seats for first and second checks and removable stainless steel relief valve seat, stainless steel cover bolts
  • Standardly furnished with NPT body connections
  • Model LF009QT furnished with quarter-turn, full port, resilient seated, lead free cast copper silicon alloy body ball valve shutoffs
  • QT: quarter-turn ball valves
  • Notice: Inquire with governing authorities for local installation requirements
  • Notice: the information contained herein is not intended to replace the full product installation and safety information available or the experience of a trained product installer, you are required to thoroughly read all installation instructions and product safety information before beginning the installation of this product
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
  • Standard/Approvals: USC Certified
  • WARRANTY: 1 Year Limited
