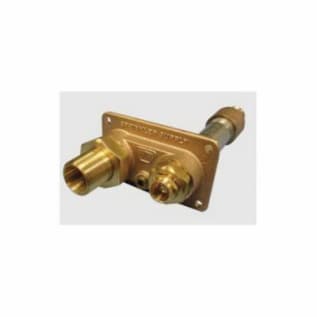

Woodford® 32P-12 Model 32 Freezeless Lawn Sprinkler Supply Wall Hydrant, 3/4 x 1 in, Combination FNPT x MNPT, 12 in THK Wall, 125 psi

1045507 MFG #: 32P-12
/ ea

Woodford® Lawn Sprinkler Supply Wall Hydrant, Freezeless, Series: Model 32, 3/4 x 1 in Nominal Size, Combination FNPT x MNPT, 12 in Wall Thickness, 125 psi, Long Tee Key Handle, 13-7/8 in Length, 120 deg F, Rough Brass

The Woodford® Lawn Sprinkler Supply is designed for irrigation purposes to be used as the supply valve for lawn sprinkler systems. This unit can also be used as a water supply for water features, decorative ponds, etc. It can be used in conjunction with any reduced pressure backflow preventer, double check, or pressure vacuum breaker that protects the system from backflow. The Model 32 provides outside access to the water supply for start-up, winterizing, and servicing the lawn sprinkler system. Installation of the Model 32 reduces the time spent in scheduling service calls or multiple visits and does not require the contractor to enter the residence. The Model 32 is key operated and utilizes a removable drain plug allowing the service contractor to winterize the system at anytime protecting the property owner's investment. Two valve inlets are available: combination 3/4 in FPT & 1 in MPT or 3/4 in FPT copper sweat. Two outlet fittings are included: 3/4 in FPT NPT & 1 in NPT.

QTY
  • Features
  • Inlet and pipe casing fits through a 1-7/8 in hole
  • Head casting fits flush against wall
  • Provides freezeless lawn sprinkler supply system shutoff with outside access
  • Allows for convenient scheduling by servicing contractors for start-up, servicing, or winterization of lawn sprinkler system without entering the home
  • Key operated for tamper resistant protection
  • Rough brass exterior finish
  • EPDM packing with adjustable packing nut
  • Permanent brass valve body with large hemispherical seating surface
  • Solid brass operating rod
  • 1 in galvanized steel pipe casing
  • Red brass castings
  • Installation requires downward pitch for draining
  • Standard/Approvals: cUPC Listed, IAPMO Listed
