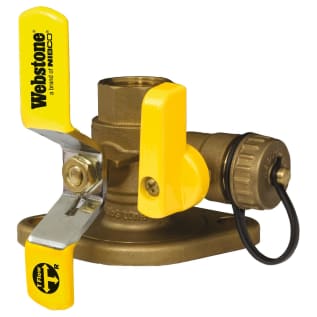

Webstone The Isolator® 41413 4141 Standard Uni-Flange Ball Valve, 3/4 in Nominal, FNPT x Rotating Flange End Style, Forged Brass Body, Full Port, PTFE Softgoods, Import
Webstone The Isolator®, 41413, Ball Valve, Standard Uni-Flange, Series: 4141, 3/4 in Nominal, FNPT x Rotating Flange End Style, 600 psi CWP Pressure, 100 deg F, Full Port, Media: Glycol Mixture/Oil/Water, 3/4 in Orifice, T-Handle Actuator, 2-3/4 in Inlet to Outlet Length, 2-3/8 in Top to Inlet Center, Forged Brass Body, PTFE Softgoods, 2-3/4 in H Dimensions, Import
- The features and benefits you trust in our original Isolator® line with two versatile enhancements
- 3-way ball purges before or after the pump
- Eliminate seven leak path
- Unique uni-body design is preserved
- Compatible with popular press tools
- Ball valve with integral spring check saves labor, space, and leak paths
- Guaranteed for life
- Save 63 minute of labor
- Full port forged brass uni-flange ball valve with detachable rotating flange, multi-function hi-flow hose drain adjustable packing gland, nuts and bolts
- Replaces 8 Components
- Fits virtually any standard circulator pump
- Flange feature a conical inlet to minimize turbulence
- Easily isolate the pump for replacement
- Prevent electrolysis and eliminate galvanic corrosion
- Blow-out proof stem
- Twice the purging capabilities in a single component
- Rotating Flange is Secured by a Snug-Fit Snap-Ring that Provides Greater Control Over Positioning During Installation
- Multi-Function Drain Makes the Isolator the Only Valve That Drains From Either Side of the Pump
- Available in Lead-Free
- Multi-Function Drain Makes the Isolator the Only Valve That Drains From Either Side of the Pump
- Standard/Approvals: ANSI B1.20.1
- WARRANTY: Limited Lifetime
Webstone The Isolator®, 41413, Ball Valve, Standard Uni-Flange, Series: 4141, 3/4 in Nominal, FNPT x Rotating Flange End Style, 600 psi CWP Pressure, 100 deg F, Full Port, Media: Glycol Mixture/Oil/Water, 3/4 in Orifice, T-Handle Actuator, 2-3/4 in Inlet to Outlet Length, 2-3/8 in Top to Inlet Center, Forged Brass Body, PTFE Softgoods, 2-3/4 in H Dimensions, Import
Designed for residential, commercial or industrial use with water or a glycol mixture. This approved Webstone valve is actuated by a blow-out proof stem and features an adjustable packing gland. Flange features a conical inlet to minimize turbulence. The rotating flange is secured by a snug-fit snap-ring that provides greater control over positioning during installation. Multi-directional main valve allows for draining from either side of the pump. Threaded ends comply with ANSI B1.20.1.
- Brand: WebstoneActuator Type: Wing Style T-HandleBall Material: HCP BrassBody Material: Forged BrassEnd Style: IPS x Rotating FlangeInlet to Outlet Length: 2-3/4Media: Water/Glycol MixtureNominal Size: 3/4Port Type: FullPressure Rating: 600 psig WOGSeries: 4141Softgoods Material: PTFETemperature Rating: 100Top to Inlet Center: 2-3/8Trim Material: Brass Stem and PTFE Seat
Webstone The Isolator® 41413 4141 Standard Uni-Flange Ball Valve, 3/4 in Nominal, FNPT x Rotating Flange End Style, Forged Brass Body, Full Port, PTFE Softgoods, Import
Webstone The Isolator®, 41413, Ball Valve, Standard Uni-Flange, Series: 4141, 3/4 in Nominal, FNPT x Rotating Flange End Style, 600 psi CWP Pressure, 100 deg F, Full Port, Media: Glycol Mixture/Oil/Water, 3/4 in Orifice, T-Handle Actuator, 2-3/4 in Inlet to Outlet Length, 2-3/8 in Top to Inlet Center, Forged Brass Body, PTFE Softgoods, 2-3/4 in H Dimensions, Import
