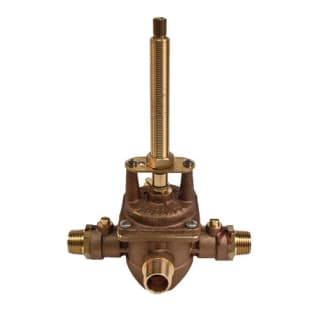

Newport Brass® 1-594 Shower Trim Valve, 5.3 gpm Valve
Newport Brass® Shower Trim Valve, Universal Collection, Valve Flow Rate 5.3 gpm, Rotating Handle, 1222 Pressure Balanced, 1/2 in C Valve Inlet Connection, 1/2 in NPT Valve Outlet Connection, Hand Shower: No, 50 psi Pressure, 180 deg F, Wall Mounting, Solid Brass, 5-5/16 in W x 3-5/8 in H Dimensions
- 3 port with service stops
- Universal 1/2 in NPT and direct sweat connections for installation flexibility
- Provides anti-scald protection and temperature regulation
- Pressure-balancing technology maintains water temperature within +/- 2 deg F
- High-temperature safety stop ensures water temperature stays below maximum setting
- Integral hot and cold inlet stops ensure easy cartridge access
- 1-1/4 in functional depth (center-back) enables back-to-back installation
- Maximum handle rotational requirement of 270 deg to achieve maximum temperature setting
- Requires newport brass BP valve trim (sold separately)
- No finish
- Standard/Approvals: ASSE 1016|ASME A112.18.1/CSA B125.1|IAPMO/cUPC Listed|IPC|US Federal and State Material Regulations
- WARRANTY: Limited
Newport Brass® Shower Trim Valve, Universal Collection, Valve Flow Rate 5.3 gpm, Rotating Handle, 1222 Pressure Balanced, 1/2 in C Valve Inlet Connection, 1/2 in NPT Valve Outlet Connection, Hand Shower: No, 50 psi Pressure, 180 deg F, Wall Mounting, Solid Brass, 5-5/16 in W x 3-5/8 in H Dimensions
- Brand: Newport Brass®Collection: UniversalDimensions: 5-5/16 in W x 3-5/8 in HHand Shower Yes/No: NoHandle Type: RotatingMaterial: Solid BrassMounting Type: WallPressure Rating: 50Temperature Rating: 180Valve Flow Rate: 5.3Valve Inlet Connection: 1/2 in CValve Outlet Connection: 1/2 in NPTValve/Cartridge Type: 1222 Pressure Balanced
Newport Brass® 1-594 Shower Trim Valve, 5.3 gpm Valve
Newport Brass® Shower Trim Valve, Universal Collection, Valve Flow Rate 5.3 gpm, Rotating Handle, 1222 Pressure Balanced, 1/2 in C Valve Inlet Connection, 1/2 in NPT Valve Outlet Connection, Hand Shower: No, 50 psi Pressure, 180 deg F, Wall Mounting, Solid Brass, 5-5/16 in W x 3-5/8 in H Dimensions
