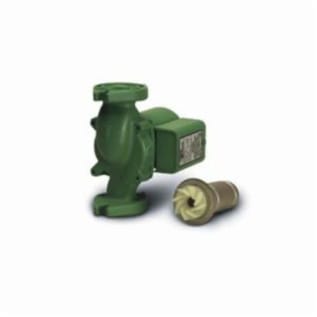

Taco® IFC™ 007-F5-7 IFC Cartridge Circulator Pump, 0 to 17 gpm Flow Rate, 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Flanged Inlet, 115 VAC, 1 ph
Taco® IFC™ Cartridge Circulator Pump, Series: 007-IFC®, 0 to 17 gpm, 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Flanged Inlet, 8-1/2 ft Maximum Head, 1/25 hp, 115 VAC, 0.71 A, 60 Hz, 1 ph, 125 psi Maximum, 3250 rpm Motor, 40 to 230 deg F, 6-1/8 in L x 6-3/8 in H
- Standard high capacity output compact design
- Quiet, efficient operation
- Direct drive-low power consumption
- Unique replaceable cartridge design-field serviceable
- Self lubricating
- No mechanical seal
- Unmatched reliability-maintenance free
- Universal flange to flange dimensions
- Motor specification - single phase, permanent split capacitor impedance protected
- Cast iron casing
- Steel stator housing
- Stainless Steel cartridge and spring
- Non metallic impeller
- Ceramic shaft
- Carbon bearing
- EPDM O-ring and gasket
- Acetal body and plunger
- The Taco® 007 is a cartridge style, maintenance free, wet-rotor, in-line, single stage circulator pump
- It is designed for quiet operation in hydronic heating, radiant heating, hydro-air fan coils, indirect water heaters, chilled fresh water, and domestic water recirculation systems
- The unique replaceable cartridge contains all of the moving parts and allows the circulator to be easily serviced instead of replacing the entire unit
- Standard/Approvals: NSF Approved|UL Listed
- INCLUDES: Integral Flow Check
Taco® IFC™ Cartridge Circulator Pump, Series: 007-IFC®, 0 to 17 gpm, 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Flanged Inlet, 8-1/2 ft Maximum Head, 1/25 hp, 115 VAC, 0.71 A, 60 Hz, 1 ph, 125 psi Maximum, 3250 rpm Motor, 40 to 230 deg F, 6-1/8 in L x 6-3/8 in H
The Taco® 007 cartridge circulator is the most popular hydronic circulator sold today. With its field serviceable cartridge design, the compact 007 provides quiet, efficient operation and unmatched reliability. The self-lubricating, maintenance free design and flow characteristics make it the ideal hydronic circulator for a wide range of applications.
- Brand: Taco®Amperage Rating: 0.71Dimensions: 6-1/8 in L x 6-3/8 in HFlow Rate: 0 to 17Frequency Rating: 60Inlet Size: 3/4 in, 1 in, 1-1/4 in, 1-1/2 in FlangedMaximum Head: 8-1/2Maximum Pressure: 125Motor Speed: 3250Power Rating: 1/25Series: 007-IFC®Temperature Rating: 40 to 230Voltage Rating: 115Phase: 1
Taco® IFC™ 007-F5-7 IFC Cartridge Circulator Pump, 0 to 17 gpm Flow Rate, 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Flanged Inlet, 115 VAC, 1 ph
Taco® IFC™ Cartridge Circulator Pump, Series: 007-IFC®, 0 to 17 gpm, 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Flanged Inlet, 8-1/2 ft Maximum Head, 1/25 hp, 115 VAC, 0.71 A, 60 Hz, 1 ph, 125 psi Maximum, 3250 rpm Motor, 40 to 230 deg F, 6-1/8 in L x 6-3/8 in H
