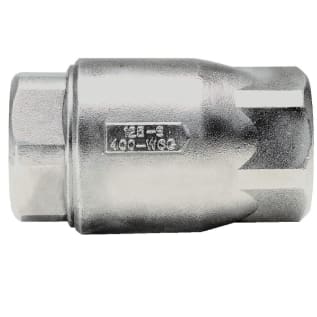

Apollo™ 6210301 62-100 Standard In-Line Ball Cone Check Valve, 1/2 in Nominal, FNPT End Style, 1.4 gpm Flow Rate, Stainless Steel Body, Domestic
Apollo™, 6210301, In-Line Ball Cone Check Valve, Standard, Series: 62-100, 1/2 in Nominal, FNPT End Style, 400 psi CWP Pressure, 350 deg F, 1.4 gpm Flow Rate, Spring-Loaded Latch-Lock Handle Actuator, 2.31 in Inlet to Outlet Length, Stainless Steel Body, 1.12 in H Dimensions, Domestic
- Unique design
- Spring-loaded for fast seating action
- Center guided so that radial alignment is never needed
- Straight-through flow minimizes pressure loss
- 0.5 psig cracking pressure
- Standard/Approvals: ASTM A351 Retainer CF8M Valve Body|RoHS Compliant|US Patent 4172465|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- WARRANTY: 5 Years
Apollo™, 6210301, In-Line Ball Cone Check Valve, Standard, Series: 62-100, 1/2 in Nominal, FNPT End Style, 400 psi CWP Pressure, 350 deg F, 1.4 gpm Flow Rate, Spring-Loaded Latch-Lock Handle Actuator, 2.31 in Inlet to Outlet Length, Stainless Steel Body, 1.12 in H Dimensions, Domestic
The 62-100 series is uniquely suited for applications in corrosive environments, including chemical processing, pulp and paper and other process industries. The rugged stainless steel body and RPTFE ball check provide reliable, patented protection against reverse flow.
- Brand: Apollo™Actuator Type: Spring-Loaded Latch-Lock HandleBody Material: Stainless SteelDimensions: 1.12 in HDomestic/Import: DomesticEnd Style: FNPTFlow Rate: 1.4Inlet to Outlet Length: 2.31Nominal Size: 1/2Pressure Rating: 400Series: 62-100Temperature Rating: 350Trim Material: Stainless Steel SpringType: Standard
Apollo™ 6210301 62-100 Standard In-Line Ball Cone Check Valve, 1/2 in Nominal, FNPT End Style, 1.4 gpm Flow Rate, Stainless Steel Body, Domestic
Apollo™, 6210301, In-Line Ball Cone Check Valve, Standard, Series: 62-100, 1/2 in Nominal, FNPT End Style, 400 psi CWP Pressure, 350 deg F, 1.4 gpm Flow Rate, Spring-Loaded Latch-Lock Handle Actuator, 2.31 in Inlet to Outlet Length, Stainless Steel Body, 1.12 in H Dimensions, Domestic
