986104

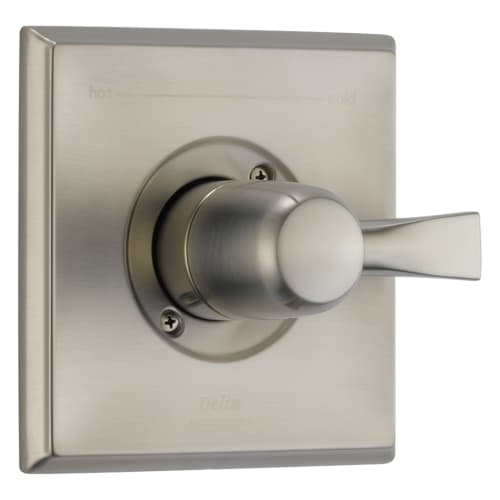

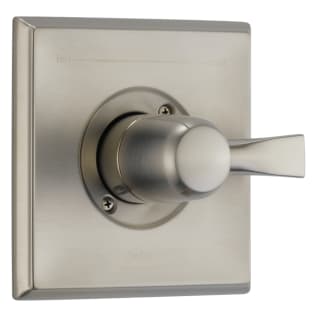

DELTA® T14051-SS Monitor® 14 Valve Trim, 2.5 gpm Shower, Stainless Steel
Shower/Tub Valves & Trims
MPN: 986104 3318923 MFG #: T14051-SS
256.30000 / ea

DELTA® Valve Trim, Series: Monitor® 14, Dryden™, 2.5 gpm Shower Flow, Lever Handle, 7 in H Trim, Single Function Pressure Balanced Valve/Cartridge, 80 psi, For Use With: MultiChoice® R10000 Series Universal Rough-In Valve Body, Brass, Stainless Steel, Domestic

The clean lines and geometric forms of the Dryden™ Collection, derived from style cues of the Art Deco period, offer a simple yet sophisticated design.

QTY
  • Features
  • Supply line not included
  • Monitor® 14 series pressure balanced single handle mixing valve trim
  • Back-to-back installation capability
  • Solid brass forged body
  • Temperature only controlled with handle
  • Field adjustable to limit handle rotation into hot water zone
  • 120 deg maximum handle rotation
  • All parts are replaceable from the front of the valve
  • Stem extension kit RP77991 can be ordered to allow for an additional 1-3/4 in wall thickness
  • RP77991 ships with chrome escutcheon screws
  • For special finishes also order RP12630 escutcheon screws in desired finish
  • Hot/cold indicator
  • Order MultiChoice® rough-in valve separately
  • Standard/Approvals: ANSI A117.1, ASSE 1016, ASME A112.18.1, CSA B125.1, ICC Compliance
  • WARRANTY: Limited Lifetime
