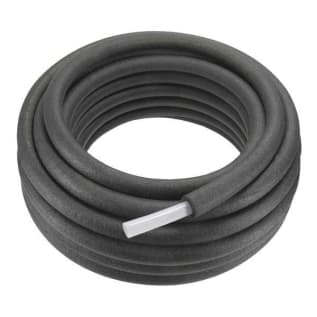

Uponor AquaPEX® F6041000 Pre-Insulated Tubing, 1 in Nominal, 2.27 in OD, 100 ft Coil L, Polyethylene

983203 MFG #: F6041000
$579.50 / ea

Uponor AquaPEX® Tubing, Pre-Insulated, 1 in Nominal Size, 2.27 in Outside Dia, 100 ft Coil Length, 80 to 160 psi, 73.4 to 200 deg F, Polyethylene

Uponor's pre-insulated PEX pipe offering complies with ASHRAE 90.1-2013 and the 2012 International Energy Conservation Code (IECC). The pipe is available in 1/2" to 2" configurations with 1/2", 1", 1-1/2" and 2" insulation that features manufactured sealed seams that run the entire length of the coil. Check with local code authorities regarding energy-code requirements for specific applications.

QTY
  • Features
  • Multi layered closed cell, cross linked polyethylene 1/2 in foam insulation
  • Cross linked polyethylene PEX-A engel method tubing encased in 1/2 in PEX-foam insulation PEX 5106
  • 0.250 Btu in/sq ft deg F thermal conductivity
  • 1.1 in per 10 deg F/100 ft linear expansion rate
  • Standard/Approvals: ASTM F876/F877/F1960/F2023, CSA B137.5, NSF/ANSI 14/61
  • WARRANTY: Limited
