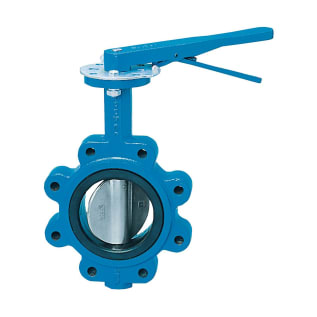

WATTS® 0525585 BF03-121 Full Lug Style Butterfly Valve, 3 in Nominal, Flanged End Style, 125/150 lb, Ductile Iron Body, Buna-N Softgoods, Import
WATTS®, 0525585, Butterfly Valve, Full Lug Style, Series: BF03-121, 3 in Nominal, Flanged End Style, 125/150 lb Pressure Class, 5 to 248 deg F, Media: Gas/Liquid/Slurry, Lever Handle Actuator, Ductile Iron Body, Aluminum Bronze Disc, 416 Stainless Steel (Stem)/Stainless Steel (Taper Pin) Stem & Pin, Buna-N Softgoods, 12-1/8 in H Dimensions, Import
Documents
- EPDM seat
- 416 stainless steel shaft
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Buna-N O-ring stem
- Standard/Approvals: API 609|ASTM A-536 Body|ASTM B-148 Disc|MSS SP-67||PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- WARRANTY: 1 year
WATTS®, 0525585, Butterfly Valve, Full Lug Style, Series: BF03-121, 3 in Nominal, Flanged End Style, 125/150 lb Pressure Class, 5 to 248 deg F, Media: Gas/Liquid/Slurry, Lever Handle Actuator, Ductile Iron Body, Aluminum Bronze Disc, 416 Stainless Steel (Stem)/Stainless Steel (Taper Pin) Stem & Pin, Buna-N Softgoods, 12-1/8 in H Dimensions, Import
This 3 in full lug style butterfly valve is used in HVAC, irrigation, OEM, commercial and institutional applications and wherever positive shutoff is required to control the flow of liquids, gases and slurries. It features ductile iron body construction, a stainless steel shaft, mounting pad for 10-position lever, gear operator or actuator.
- Brand: WATTS®Actuator Type: Lever HandleBody Material: Ductile IronDimensions: 12-1/8 in HDomestic/Import: ImportEnd Style: FlangedMedia: Gas/Liquid/SlurryNominal Size: 3Pressure Class: 125/150Series: BF-03-121-15-M2Softgoods Material: Buna-NTemperature Rating: 5 to 248Type: Full Lug Style
WATTS® 0525585 BF03-121 Full Lug Style Butterfly Valve, 3 in Nominal, Flanged End Style, 125/150 lb, Ductile Iron Body, Buna-N Softgoods, Import
WATTS®, 0525585, Butterfly Valve, Full Lug Style, Series: BF03-121, 3 in Nominal, Flanged End Style, 125/150 lb Pressure Class, 5 to 248 deg F, Media: Gas/Liquid/Slurry, Lever Handle Actuator, Ductile Iron Body, Aluminum Bronze Disc, 416 Stainless Steel (Stem)/Stainless Steel (Taper Pin) Stem & Pin, Buna-N Softgoods, 12-1/8 in H Dimensions, Import
