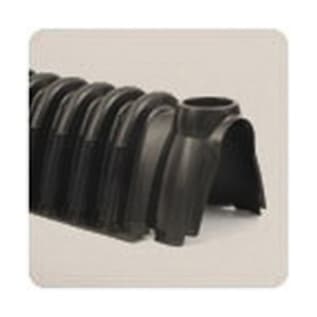

ADS® Arc™ 18 1812BD Drainage Chamber, 67 in OAL x 16 in OAW x 12 in OAH, 3.42 cu-ft
ADS® Arc™ 18 Drainage Chamber, 12 in Overall Height, 67 in Overall Length, 16 in Overall Width, 3.42 cu-ft Storage, Plastic
Documents
- H-10 load rating
- Injection-molded from High Density Polyethylene (HDPE) for lightweight and sturdy design
- 20-degree integral articulating joint that is ideal for either straight or contoured septic leachfield applications
- True corrugated chamber design eliminates flat sur faces and provides increased load bearing capability in the trench
- Designed to accommodate both gravity-fed and pressure-dosed systems
- "Post and Dome" joint provides a more positive connection during installation and backfill
- A universal inlet/outlet end cap
- Inspection vent ports on every unit with easy-to-remove knockouts for maximum job site flexibility
- Convenient five-foot lengths are easy to handle
- Quickly installed by one person into 18 to 24 in wide trench or bed applications
- Diamond plate texture increases slip resistance and enhances ease of installation
- Standard/Approvals: IAPMO PS 63
- WARRANTY: Limited
ADS® Arc™ 18 Drainage Chamber, 12 in Overall Height, 67 in Overall Length, 16 in Overall Width, 3.42 cu-ft Storage, Plastic
Leaching chambers are rapidly becoming the product of choice for leachfield applications over conventional pipe and gravel systems. Their lightweight construction offers lower installed costs and less intrusive installations. The Arc 18 septic leaching chamber is a sturdy, lightweight plastic unit that combines maximized infiltrative surface area and storage capacity with an improved structural design to handle most any conventional leachfield system challenge without sacrificing performance. This unique combination allows for increased effluent dispersal performance and improved structural integrity as well as ease of installation and simplified contouring capabilities.
- Brand: ADS®Material: PlasticOverall Height: 12Overall Length: 67Overall Width: 16Storage Volume: 3.42
