Grinnell Fire

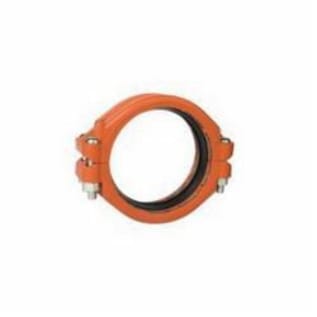

Grinnell Fire 90920ES Plain End Coupling, 2 in Nominal, Grooved End Style, Ductile Iron, Orange Painted

959178 MFG #: 90920ES
$202.50 / ea
  • Color: Orange
  • Dimensions: 5.75 in W x 3.69 in H
  • End Style: Grooved
  • Finish: Orange Painted
  • Fitting/Connector Type: Coupling
  • Material: Ductile Iron
  • Method of Manufacture: Cast
  • Nominal Size: 2
  • Pressure Rating: 750
  • Schedule Rating: SCH 40/STD
  • Series: 909
  • Thickness: 3.31
  • Type: Plain

Grinnell Fire End Coupling, Plain, Series: 909, Fitting/Connector Type: Coupling, 2 in Nominal, Grooved, 3.31 in Thickness, SCH 40/STD, 750 psi, Cast, Ductile Iron, Orange Painted, Orange, 5.75 in W x 3.69 in H

The GRINNELL Plain End Coupling utilizes hardened gripping teeth to securely grip onto plain and beveled end pipe surfaces. It is capable of pressures up to 750 psi (51,7 bar)depending on pipe size and wall thickness. The Figure 909 Plain End Coupling is designed for Schedule 40 steel pipe and is not for use with steel pipe with a Brinnell hardness greater than 150, plastic, cast or ductile iron pipes. Contact TYCO Fire Protection Products for recommendations on other materials and pipe schedules.

QTY
  • Features
  • Standard/Approvals: ASTM A536
  • WARRANTY: 10 Years Limited
