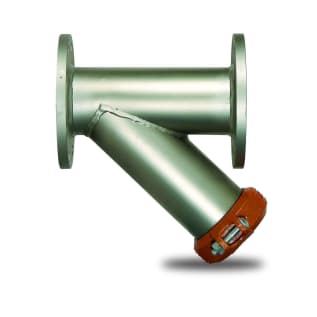

WATTS® 0821111 77F-SS Wye Strainer With Perforated 304 Stainless Steel Screen, 3 in Nominal, 10-1/8 in OAL, Flange Connection, EPDM Softgoods, Domestic
WATTS® Wye Strainer, Series: 77F-SS, 3 in Nominal, 10-1/8 in Overall Length, 13 in Overall Height, Flange, 1/2 in NPT Blow-Off, EPDM, 304 Stainless Steel Body, Domestic
- Wye pattern
- 50% lighter than cast iron strainers, reducing handling and installation equipment costs
- Lead free construction complies with California Prop 65 and proposed Federal Government lead free standards
- Single, two-bolt, grooved style cover provides quick and easy access, saving disassembly/assembly time
- Flanged
- Standard/Approvals: ANSI B16.1 Dimensions and Drilled Flange Holes|ASTM A-312 Body|ASTM A-36 Flanges|ASTM A-276 Screen|US Green Building Council Member|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm
- WARRANTY: 1 year Limited
WATTS® Wye Strainer, Series: 77F-SS, 3 in Nominal, 10-1/8 in Overall Length, 13 in Overall Height, Flange, 1/2 in NPT Blow-Off, EPDM, 304 Stainless Steel Body, Domestic
Series 77F-SS, 77G-SS Stainless Steel, Flanged and Grooved, Wye-Pattern Strainers feature a wye-pattern, stainless steel body with flanged (Model 77F-SS) or grooved (Model 77G-SS) connections, stainless steel screen, ductile iron or epoxy-coated ductile iron (FDA Model) retainer cap with EPDM gasket, grooved coupling, and blow-down outlet. Series 77F-SS, 77G-SS is lightweight, corrosion-resistant, and has a self-cleaning feature. It is suitable for use in potable water and food applications in compliance with NSF-61 and FDA requirements. Maximum Pressure (non-shock): 200psi (13.8 bar) at 150 deg F (66 deg C) WOG.
- Brand: WATTS®Blow-Off Size: 1/2 in NPTConnection Type: FlangedDomestic/Import: DomesticNominal Size: 3Overall Length: 10-1/8Series: 77F-SSBody Material: 304 Stainless SteelOverall Height: 13Softgoods Material: EPDM
WATTS® 0821111 77F-SS Wye Strainer With Perforated 304 Stainless Steel Screen, 3 in Nominal, 10-1/8 in OAL, Flange Connection, EPDM Softgoods, Domestic
WATTS® Wye Strainer, Series: 77F-SS, 3 in Nominal, 10-1/8 in Overall Length, 13 in Overall Height, Flange, 1/2 in NPT Blow-Off, EPDM, 304 Stainless Steel Body, Domestic
