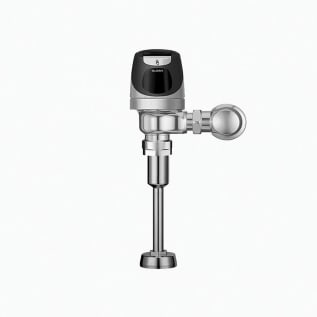

Sloan® 3370004 8186 Single-Flush Sensor Exposed Flushometer, SOLIS®, Power Source: Solar, 0.5 gpf Flush Rate, 3/4 in IPS Inlet, 3/4 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic
Sloan®, 3370004, Sensor Exposed Flushometer, Single-Flush, Series: 8186, SOLIS® Collection, Urinal Fixture, Solar Power Source, 0.5 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 22 to 42 in Sensor, 15 to 80 psi Pressure, Semi-Red Brass, Polished Chrome, Domestic
- Handle packing, main seat, stop seat and vacuum breaker molded from Permex® rubber compound for chloramine resistance
- Low battery flashing LED
- Sweat solder adapter with cover tube and cast wall flange with set screw
- State-of-the-art photovoltaic technology delivers solar operation
- The sensor assembly is powered by a solar cell that will harvest power from the artificial indoor light (incandescent, fluorescent or LED) and use it as the energy source
- The solar cell can provide approximately 100% power with 650 illuminance (lux)
- (4) Size AA battery back-up power Source
- Synthetic rubber seals for chloramine resistance
- Infrared sensor with multiple focused, lobular sensing fields for high and low target detection
- Fixed metering bypass and no external volume adjustment to ensure water conservation
- Engineered metal cover with replaceable lens window
- ADA compliant Sloan® Solis® solar powered infrared sensor for automatic no-hands operation
- 3/4 in IPS screwdriver Bak-Chek® angle stop with vandal-resistant stop cap
- User friendly 3 sec flush delay and Courtesy Flush® override button
- High copper, low zinc brass castings for dezincification resistance
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
- Standard/Approvals: ADA Compliant|BAA Compliant|cUPC Listed|cUPC Green Certified|Satisfies LEED Credits|WaterSense Listed
- INCLUDES: (4) AA Batteries
- WARRANTY: 3 Years Limited
Sloan®, 3370004, Sensor Exposed Flushometer, Single-Flush, Series: 8186, SOLIS® Collection, Urinal Fixture, Solar Power Source, 0.5 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 22 to 42 in Sensor, 15 to 80 psi Pressure, Semi-Red Brass, Polished Chrome, Domestic
Exposed, Solar Powered, Sensor Activated Sloan SOLIS® Model Urinal Flushometer, with Smart Sense Technology™.
- Brand: Sloan®Connection Location: Top SpudFinish/Color: Polished ChromeFixture Type: UrinalFlush Rate: 0.5Inlet Size: 3/4 in IPSMaterial: Semi-Red BrassPower Source: SolarPressure Rating: 15 to 80Rough-In Size: 11-1/2Sensor Range: 22 to 42Series: 8186Spud Coupling: 3/4Type: Single-FlushValve Design: Diaphragm
