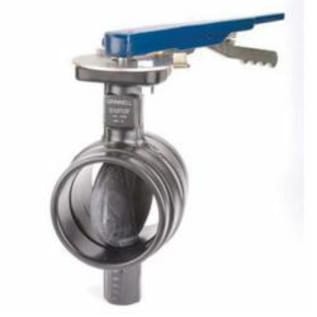

Grinnell® B30250EL Butterfly Valve With Lever Handle, 5 in, Grooved, Ductile Iron Body
Butterfly Valves
MPN: 939859 6051750 MFG #: B30250EL
2006.00000 / ea

Grinnell® Butterfly Valve, Series: B302, 5 in Nominal Size, Grooved, 300 psi, -20 to 200 deg F, Lever Handle Actuator, Ductile Iron Body, Ductile Iron/Stainless Steel Trim, EPDM O-Ring, Polyamide Coated, Black, 5.563 in O.D

The Grinnell® model B302 butterfly valves provide for efficient control in piping systems of on/off or throttling/balancing service, fluid flow and bubble-tight shut-off. The valves are furnished with grooved ends for use with grooved couplings and can be easily adapted to flanged components utilizing Grinnell® Class 150 flange adapters.

QTY
  • Features
  • The body and disc construction provides for increased strength and durability
  • Model has a throttling plate which provides throttling notches every 10 deg for manual control in balancing up to 90 deg or shut-Off service
  • Flow may be from either direction and the valve may be positioned in any orientation
  • Standard/Approvals: MSS SP-67
