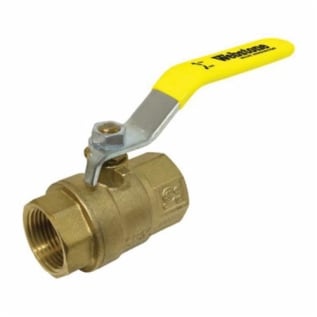

Webstone 41706 4170 Standard Ball Valve, 1-1/2 in Nominal, IPS End Style, Full Port, Import
Webstone, 41706, Ball Valve, Standard, Series: 4170, 1-1/2 in Nominal, IPS End Style, 600 psig WOG Pressure, 100 deg F, Full Port, Media: Gas/Oil/Water, 1-1/2 in Orifice, Lever Operated Actuator, 3-11/16 in Inlet to Outlet Length, 3-1/16 in Top to Inlet Center, Brass Stem and PTFE Seat Trim, Import
- Full port forged brass ball valve with chrome plated lever handle and adjustable packing gland
- PTFE seat/stem seal
- Brass stem
- Control flow with quarter-turn lever handle
- Blow-out proof stem
- Standard/Approvals: ANSI B1.20.1|cCSAu Certified|NSF/ANSI 61-8 Certified
- WARRANTY: Lifetime
Webstone, 41706, Ball Valve, Standard, Series: 4170, 1-1/2 in Nominal, IPS End Style, 600 psig WOG Pressure, 100 deg F, Full Port, Media: Gas/Oil/Water, 1-1/2 in Orifice, Lever Operated Actuator, 3-11/16 in Inlet to Outlet Length, 3-1/16 in Top to Inlet Center, Brass Stem and PTFE Seat Trim, Import
Designed for residential, commercial or industrial use with water oil or gas. This approved Webstone valve is actuated by a blow-out proof stem and features an adjustable packing gland. Threaded ends comply with ANSI B1.20.1 4170T valves are not manufactured in an ISO facility. CSA certification applies to valves 1/2 to 2 in.
- Brand:Â WebstoneActuator Type:Â Lever OperatedBall Material:Â HCP BrassBody Material:Â Forged BrassEnd Style:Â IPSInlet to Outlet Length:Â 3-11/16Media:Â Gas/Oil/WaterNominal Size:Â 1-1/2Port Type:Â FullPressure Rating:Â 600 psig WOGSeries:Â 4170Softgoods Material:Â PTFETemperature Rating:Â 100Top to Inlet Center:Â 3-1/16Trim Material:Â Brass Stem and PTFE Seat
