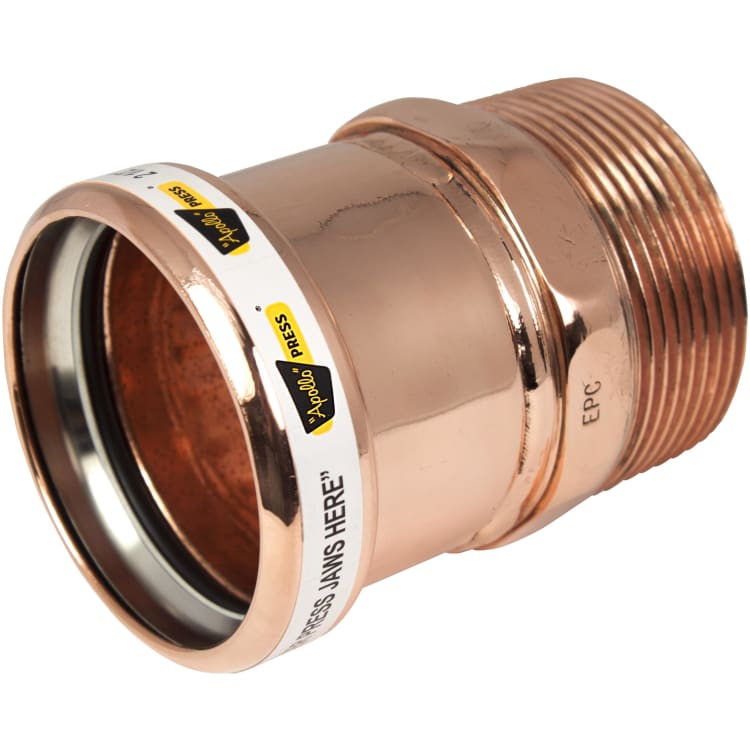

EPC APOLLOXPRESS® 10061992 804 Large Diameter Press Adapter, 4 in, C x MNPT, Copper, Domestic

920930 MFG #: 10061992
$387.74 / ea
EPC APOLLOXPRESS® 10061992 804 Large Diameter Press Adapter, 4 in, C x MNPT, Copper, Domestic
  • Dimensions: 4.7 in L x 5.43 in W x 3.16 in H
  • Domestic/Import: Domestic
  • End Style: C x MNPT
  • Fitting/Connector Type: Adapter
  • Material: Copper
  • Nominal Size: 4
  • Pressure Rating: 200
  • Series: 804
  • Temperature Rating: 0 to 250
  • Type: Large Diameter Press

EPC APOLLOXPRESS® Adapter, Large Diameter Press, Series: 804, Fitting/Connector Type: Adapter, 4 in Nominal, C x MNPT, 200 psi, 0 to 250 deg F, Copper, 4.7 in L x 5.43 in W x 3.16 in H, Domestic

The APOLLOXPRESS® 804 Large Diameter Press Adapter features a Lead-Free dezincification resistant copper body, a patented stainless-steel solid cross-section Grab Ring, a Nylon Separation Ring and an EPDM O-Ring. Our Large Diameter APOLLOXPRESS® products are manufactured utilizing proven ASTM materials and standards. Proudly Made In The USA.

QTY
Add to List
  • Features
  • Lead free construction
  • Leak-before-press technology
  • Visual element, break away band
  • Compatible with XL-C™ pressing tools
  • Approved for underground installation
  • Use with hard/soft ASTM B88 K, L & M copper tube
  • UNS C12200 copper
  • ANSI/NSF-61 Listed silicone lubrication
  • Standard/Approvals: ARRA Compliant, cUPC Listed, IAPMO File Listings: 4861, 6174 and N-4951, NSF/ANSI NSF 61-Water Quality, NSF/ANSI NSF-372-Lead Free (LF)
