EBAA®

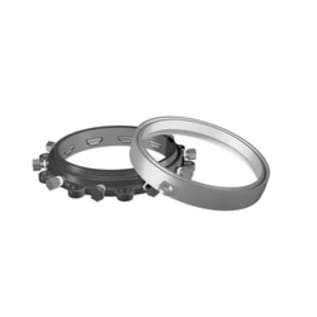

EBAA® MEGAFLANGE® 2108 2100 Restrained Flange Adapter, 8 in, Ductile Iron, Domestic
EBAA® MEGAFLANGE® Flange Adapter, Restrained, Series: 2100, Fitting/Connector Type: Adapter, 8 in Nominal, 350 psi, Ductile Iron, Domestic
- MEGAFLANGE® adapts and restrains plain end ductile iron, PVC, steel and HDPE pipe to flanged pipe or fittings, where the flange conforms to ANSI/AWWA C111/A21.11 with flange surface facing in accordance with ANSI/AWWA C207 of the latest revision
- Meets ANSI B16.5 class 150/125 drilling pattern
- Flange bolts are zinc coated, fastener class coated bolts
- Not for use on plain end fittings
- MEGA-BOND® restraint coating system
- Minimum 2 to 1 safety factor
- Pipe can be cut to length in the field
- Joint deflection up to 5 deg
- Easy dismantling allows fast removal of valves, meters or fittings for replacement or repair
- Standard/Approvals: ANSI B16.5 Class 150/125|ANSI/AWWA C111/A21.11|ANSI/AWWA C207|ASTM A536|FM Approved|UL Listed
- WARRANTY: 1 Year
EBAA® MEGAFLANGE® Flange Adapter, Restrained, Series: 2100, Fitting/Connector Type: Adapter, 8 in Nominal, 350 psi, Ductile Iron, Domestic
The Series 2100 MEGAFLANGE® Restrained Flange Adapter is a field-adaptable wedge style restrained flanging system. It has a restraint ring and a gasket ring to give the maximum amount of flexibility during and after installation. The MEGAFLANGE can be used on AWWA C900 and C905 PVC Pipe, IPS O.D. (Class) PVC Pipe, Ductile Iron Pipe, Steel Pipe and HDPE Pipe.
- Brand: EBAA®Domestic/Import: DomesticFitting/Connector Type: AdapterMaterial: Ductile IronNominal Size: 8Pressure Rating: 350Series: 2100Type: Restrained
