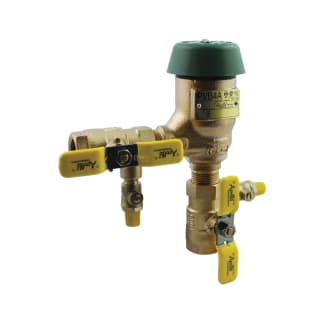

Apollo™ 4A-505-02F 4A-500 Pressure Vacuum Breaker With Ball Valve, 1 in Nominal, Bronze Body, Domestic
Apollo™, 4A-505-02F, Pressure Vacuum Breaker With Ball Valve, Series: 4A-500, 1 in Nominal, 150 psi Pressure, 33 to 140 deg F, Media: Hot/Cold Water, Bronze Body, Domestic

- Low pressure loss documented by independent approval agencies
- Built-in freeze resistance feature standard
- Easily removable modular check valve cartridge
- Captured stainless steel springs
- Ball valve shutoffs with stainless steel handles and nuts standard
- Test cocks located for easy draining
- Corrosion resistant
- No special tools required for servicing
- Unique canopy detachment
- Vertical up/horizontal installation
- F-SAE testcocks
- Standard/Approvals: ASSE 1020|Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California|CSA B.64.1.2|CSAus Certified|C84400/C89836 Lead-Free Bronze Body|C84400/C87800 Lead-Free Bronze Ball Valves/Test cocks|IAPMO Listed
- WARRANTY: 5 years
Apollo™, 4A-505-02F, Pressure Vacuum Breaker With Ball Valve, Series: 4A-500, 1 in Nominal, 150 psi Pressure, 33 to 140 deg F, Media: Hot/Cold Water, Bronze Body, Domestic
The Apollo™ model PVB4A and PVBLF4A pressure vacuum breaker A series prevents contamination of the potable water supply due to backsiphonage. A standard integral freeze protection relief valve serves to reduce the possibility of damage due to intermittent freezing conditions. The modular check valve cartridge provides a captured spring, a replaceable seat and a reversible silicone seat disc. This assembly features ball valve shutoffs with stainless steel handles and nuts as standard.
- Brand: Apollo™Body Material: BronzeDomestic/Import: DomesticMedia: Hot/Cold WaterNominal Size: 1Pressure Rating: 150Series: 4A-500Temperature Rating: 33 to 140
