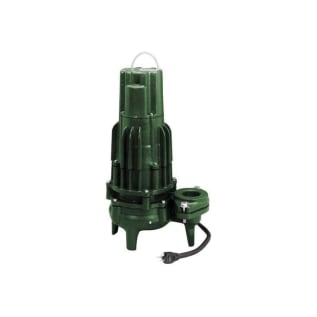

Zoeller® 294-0004 Waste-Mate 290 1-Seal High-Head Submersible Sewage Pump, 1-1/2 hp, 230 VAC, 2 or 3 in FNPT Outlet, Cast Iron, 13.7 A, 1 ph
Zoeller® Submersible Sewage Pump, 1-Seal High-Head, Series: Waste-Mate 290, 196 gpm, 2 or 3 in FNPT Outlet, 62 ft Maximum Head, 1-1/2 hp, 230 VAC, 13.7 A, 60 Hz Frequency, 1 ph ph, 3450 rpm Motor, 3-Wire Neoprene Cord, Non-Clogging Vortex Impeller, 130 deg F, Ball Bearing, Cast Iron, 19-5/16 in H x 12-7/8 in W Dimensions
- Durable, cast iron constructed switch case, base, motor and pump housing
- No sheet metal parts to rust or corrode
- All cast iron class 30 30000 lb tensile strength
- Stainless steel screws, bolts, float rod, handle, guard, arm and seal assembly
- Oil filled, hermetically-sealed, automatic reset thermal overload protected (1 ph only) motor
- Shaft seal - stainless steel carbon and ceramic rotary
- 1117 carbon steel motor shaft (single seal models)
- Corrosion-resistant, powder coated epoxy finish
- Upper and lower ball bearing running in bath of oil
- Neoprene square ring and gasket
- All models pass 2 in spherical solids
- 100% computerized tested
- 20 ft L cord
- Non automatic operation
- Permanent split capacitor or 3 ph motor
- Class F insulation
- Standard/Approvals: cCSAus Certified|SSPMA Certified|UL Listed
Zoeller® Submersible Sewage Pump, 1-Seal High-Head, Series: Waste-Mate 290, 196 gpm, 2 or 3 in FNPT Outlet, 62 ft Maximum Head, 1-1/2 hp, 230 VAC, 13.7 A, 60 Hz Frequency, 1 ph ph, 3450 rpm Motor, 3-Wire Neoprene Cord, Non-Clogging Vortex Impeller, 130 deg F, Ball Bearing, Cast Iron, 19-5/16 in H x 12-7/8 in W Dimensions
Heavy duty construction, oversized bearings and balanced non-clogging vortex impellers allow these pumps to stand up to the highest heads and maximum flows. Using Zoeller® cool run design, we added fins to these pumps, lowering operating temperatures. The corrosion resistant, epoxy powder coated finish and hermetically sealed, oil- filled motor add up to a long lasting, trouble-free product.
- Brand: Zoeller®Amperage Rating: 13.7Bearing Type: BallCord Type: 3-Wire NeopreneDimensions: 19-5/16 in H x 12-7/8 in WFlow Rate: 196Frequency Rating: 60Horsepower: 1-1/2Impeller Type: Non-Clogging VortexMaterial: Cast IronMaximum Head: 62Motor Speed: 3450Outlet Size: 2 or 3 in FNPTSeries: Waste-Mate 290Temperature Rating: 130Type: 1-Seal High-HeadVoltage Rating: 230Phase: 1
Zoeller® 294-0004 Waste-Mate 290 1-Seal High-Head Submersible Sewage Pump, 1-1/2 hp, 230 VAC, 2 or 3 in FNPT Outlet, Cast Iron, 13.7 A, 1 ph
Zoeller® Submersible Sewage Pump, 1-Seal High-Head, Series: Waste-Mate 290, 196 gpm, 2 or 3 in FNPT Outlet, 62 ft Maximum Head, 1-1/2 hp, 230 VAC, 13.7 A, 60 Hz Frequency, 1 ph ph, 3450 rpm Motor, 3-Wire Neoprene Cord, Non-Clogging Vortex Impeller, 130 deg F, Ball Bearing, Cast Iron, 19-5/16 in H x 12-7/8 in W Dimensions
