Holdrite®

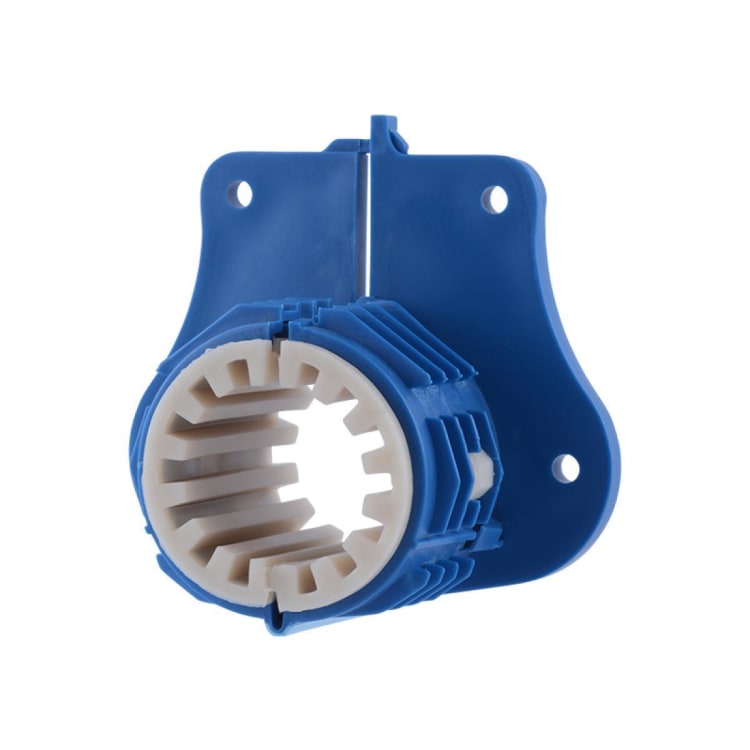

Holdrite® SILENCER™ 263 Acoustic Thru-Stud Isolator/Suspension Clamp, 1 in CTS Pipe/Tube, 50 lb Load, Polypropylene, Domestic

874237 MFG #: 263
$8.00 / ea
  • Color: Blue
  • Dimensions: 2 in Dia x 3.2 in L
  • Domestic/Import: Domestic
  • Load Capacity: 50
  • Material: Polypropylene
  • Pipe/Tube Size: 1 in CTS
  • Suitable For Use With: Copper, PEX and CPVC Tube
  • Temperature Rating: -10 to 140 deg F Suspension/-10 to 180 deg F Through-Stud
  • Thickness: 0.19

Holdrite® SILENCER™ Acoustic Thru-Stud Isolator/Suspension Clamp, 1 in CTS Pipe/Tube, 50 lb, 0.19 in Thickness, Polypropylene, Blue, For Use With: Copper, PEX and CPVC Tube, -10 to 140 deg F Suspension/-10 to 180 deg F Through-Stud, 2 in Dia x 3.2 in L, Domestic

Model 263 can be used as a suspension hanger, e.g. from a joist or cross-member or a Holdrite® Stout Bracket®, or as a through-hole isolator in wood or metal framing. As a through-hole isolator, mounts in 2 in hole in wood or sheet metal up to 14 ga. Secures and retains tubing while providing superior acoustical isolation between the tubing and the supporting structure. Supports Copper, PEX and CPVC tubing.

QTY
  • Features
  • Through stud isolator/suspension clamp, dual purpose design
  • Integrates directly with Stout Bracket® or EZ-Strut™ bracket
  • Isolators: TPE natural (off-white), 45 shore A
  • Standard/Approvals: BAA Compliant, FR UL94V-2, UPC/IPC/IAPMO Listed, PS42-96
