866935

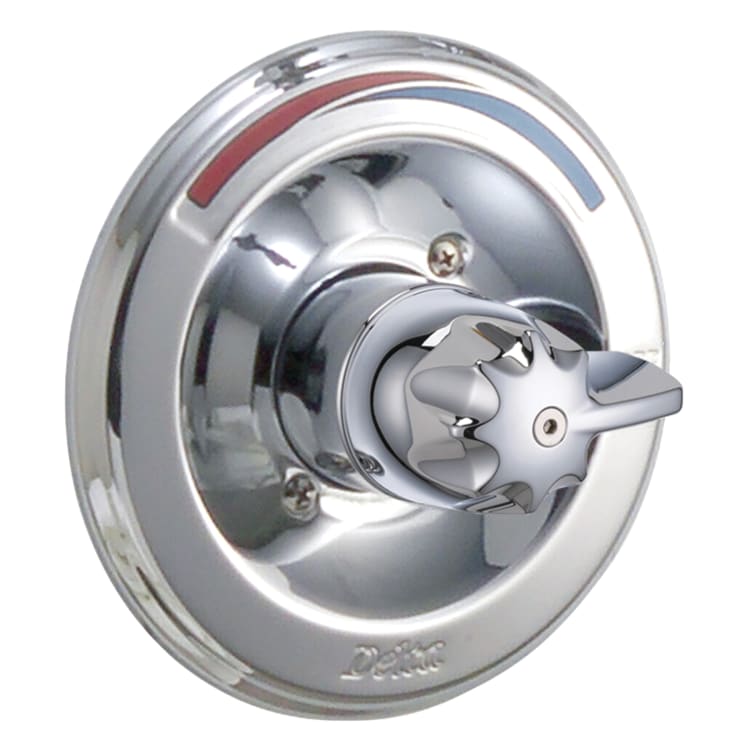

DELTA® T13090 Monitor® 13 Valve Trim, Chrome Plated
Shower/Tub Valves & Trims
MPN: 866935 3319420 MFG #: T13090
88.90000 / ea

DELTA® Valve Trim, Series: Monitor® 13, Classic, Blade Handle, 7 in Dia Trim, Single Function Pressure Balanced Valve/Cartridge, For Use With: MultiChoice® R10000 Series Universal Rough-In Valve Body, Brass, Chrome Plated, Domestic

Designed for performance, the Classic Bath Collection provides smart technology that will stand the test of time.

QTY
  • Features
  • Monitor® 13 series pressure balanced bath mixing valve
  • Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
  • Back-to-back installation capability
  • Temperature only controlled with metal lever handle
  • Field adjustable to limit handle rotation into hot water zone
  • 120 deg maximum handle rotation
  • All parts are replaceable from the front of the valve
  • Push Clean™ shower head
  • Vandal-resistant blade handle adjusts temperature
  • Red/blue label on escutcheon
  • Standard/Approvals: ASME A112.18.1, ASSE 1016, CSA B125.1
  • WARRANTY: Limited Lifetime
