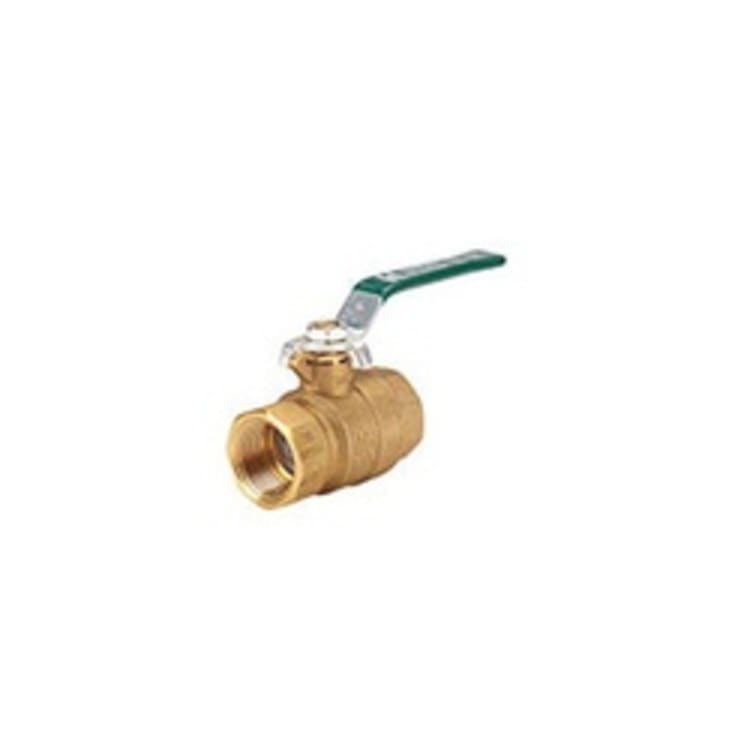

Hammond Valve 8901010112 2-Piece Ball Valve, 1-1/2 in, NPT, Forged Brass Body, Full Port

854388 MFG #: 8901010112
$154.58 / ea
  • Actuator Type: Handle
  • Ball Material: Chrome Plated Cast Brass
  • Body Material: Forged Brass
  • Brand: Hammond Valve
  • End Style: NPT
  • Inlet to Outlet Length: 3-3/4 in
  • Manufacturer: Hammond Valve
  • Nominal Size: 1-1/2 in
  • Orifice Size: 1-1/2 in
  • Port Type: Full
  • Pressure Rating: 600 psi WOG
  • Series: 8901
  • Softgoods Material: PTFE Seal, Packing Thrust Washer
  • Top to Inlet Center: 2.52 in
  • Trim Material: Brass
  • Type: 2-Piece

Hammond Valve Ball Valve, 2-Piece, Series: 8901, 1-1/2 in Nominal, NPT, 600 psi WOG, Full Port, 1-1/2 in Orifice, Handle Actuator, Chrome Plated Cast Brass Ball, 3-3/4 in Inlet to Outlet Length, 2.52 in Top to Inlet Center, Forged Brass Body, Brass Trim, PTFE Seal, Packing Thrust Washer

QTY
  • Features
  • Videos
  • Not intended for use in potable water
  • Blow-out proof stem
  • Standard/Approvals: ASME A112.4.14/B16.44 , ANSI Z 21.15a, ASTM B283 Body, ASTM B584 Ball, ASTM B124 Stem, CSA 9.1a, FM 1140, MSS SP-110, UL 125/842
