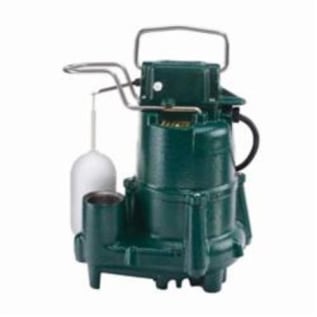

Zoeller® 98-0005 Flow-Mate 98 Single Seal Submersible Pump With Single Seal, 72 gpm Flow Rate, 1-1/2 in NPT Outlet, 1 ph, 1/2 hp, Cast Iron
Zoeller® Submersible Pump, Single Seal, Series: Flow-Mate 98, 72 gpm Flow Rate, 1-1/2 in NPT Outlet, 23 ft Maximum Head, 1/2 hp, 115 VAC, 9.4 A, 60 Hz Frequency, 1 ph ph, 1725 rpm Motor, Non-Clogging Vortex Impeller, 130 deg F, Auto Reset Thermal Overload Enclosure, Oil-Fed Cast Iron Bearing, Cast Iron, 10-1/8 in W x 12 in H Dimensions
- Corrosion-resistant, powder coated epoxy finish
- Cast iron switch case, motor, pump housing and base
- No steel sheet metal parts to rust or corrode
- All castings are cast iron class 25-30 25000 lb tensile strength
- Stainless steel screws, guard, handle, arm and seal assembly
- Float-operated 2-pole mechanical switch
- Permanent split capacitor motor, oil filled and hermetically-sealed, automatic reset thermal overload protection
- Upper and lower oil-fed cast iron bearing
- Carbon and ceramic shaft seal
- Entire unit pressure-tested after assembly
- Watertight neoprene square ring between motor and pump housing
- Passes 1/2 in spherical solids
- No screens to clog
- 1-1/2 in NPT discharge (1-1/2 x 2 in PVC adapter included with BN and BE Models)
- Packaged systems available
- For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump
- 9-1/2 in on point, 3 in off point
- Standard/Approvals: CSA Certified|SSPMA Standard|UL Listed
- INCLUDES: 2-Pole Mechanical Switch, Stainless Steel Float Guard and Switch Arm, Solid Buoyant Polypropylene Float, Stainless Steel Handle and 15 ft Cord with Plug
- WARRANTY: 3 Years
Zoeller® Submersible Pump, Single Seal, Series: Flow-Mate 98, 72 gpm Flow Rate, 1-1/2 in NPT Outlet, 23 ft Maximum Head, 1/2 hp, 115 VAC, 9.4 A, 60 Hz Frequency, 1 ph ph, 1725 rpm Motor, Non-Clogging Vortex Impeller, 130 deg F, Auto Reset Thermal Overload Enclosure, Oil-Fed Cast Iron Bearing, Cast Iron, 10-1/8 in W x 12 in H Dimensions
Effluent or dewatering submersible pumps for septic tanks, low pressure pipe (LPP) and enhanced flow STEP systems.
- Brand: Zoeller®Amperage Rating: 9.4Bearing Type: Oil-Fed Cast IronDimensions: 10-1/8 in W x 12 in HEnclosure Type: Auto Reset Thermal OverloadFlow Rate: 72Frequency Rating: 60Horsepower: 1/2Impeller Type: Non-Clogging VortexMaterial: Cast IronMaximum Head: 23Motor Speed: 1725Outlet Size: 1-1/2 in NPTSeries: Flow-Mate 98Temperature Rating: 130Type: Single SealVoltage Rating: 115Phase: 1
