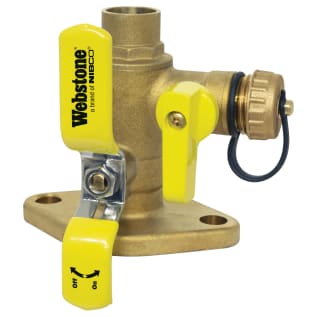

Webstone The Isolator® 50413 5041 Standard Uni-Flange Ball Valve, 3/4 in Nominal, C x Flange End Style, Forged Brass Body, Full Port, EPDM/PTFE Softgoods, Import
Webstone The Isolator®, 50413, Ball Valve, Standard Uni-Flange, Series: 5041, 3/4 in Nominal, C x Flange End Style, 600 psi CWP Pressure, 100 deg F, Full Port, Media: Glycol Mixture/Oil/Water, 3/4 in Orifice, Wing Style T-Handle Actuator, 4 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, Forged Brass Body, EPDM/PTFE Softgoods, Import
- Eliminate seven leak path
- Unique uni-body design is preserved
- Heavy duty forged brass construction
- Ball valve with integral spring check saves labor, space, and leak paths
- EPDM washer
- Guaranteed for life
- Adjustable Packing Gland
- Replace eight component
- Fits virtually any standard circulator pump
- Flange feature a conical inlet to minimize turbulence
- These valves have revolutionized the installation of circulator pumps
- Easily isolate the pump for replacement
- Prevent electrolysis and eliminate galvanic corrosion
- Blow-out proof stem
- Our original Isolator® uni-flange ball valve design has evolved into the largest flanged ball valve program in the industry today
- Multi-function drain make the isolator the only valve that drain from either side of the pump
- PTFE seat/stem seal
- Multi-Function Drain Makes the Isolator the Only Valve That Drains From Either Side of the Pump
- Standard/Approvals: ASME B16.18
- WARRANTY: Lifetime
Webstone The Isolator®, 50413, Ball Valve, Standard Uni-Flange, Series: 5041, 3/4 in Nominal, C x Flange End Style, 600 psi CWP Pressure, 100 deg F, Full Port, Media: Glycol Mixture/Oil/Water, 3/4 in Orifice, Wing Style T-Handle Actuator, 4 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, Forged Brass Body, EPDM/PTFE Softgoods, Import
Designed for residential, commercial or industrial use with water or a glycol mixture. This approved Webstone valve is actuated by a blow-out proof stem and features an adjustable packing gland. Flange features a conical inlet to minimize turbulence. Solder joint temperature ratings are per ASME B16.18 Annex A for 95-5 solder. Other solder materials have lower pressure/temperature limits. Do not silver braze or overheat valves when soldering.
- Brand: WebstoneActuator Type: Lever OperatedBall Material: HCP BrassBody Material: Forged BrassEnd Style: C x FlangedInlet to Outlet Length: 4Media: Water/Glycol MixtureNominal Size: 3/4Port Type: FullPressure Rating: 600 psig WOGSeries: 5041Softgoods Material: PTFETemperature Rating: 100Top to Inlet Center: 2-1/4Trim Material: Brass Stem and PTFE Seat
