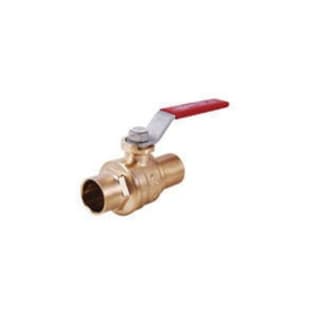

LEGEND 101-048 S-1001 Traditional Ball Valve, 2 in Nominal, C End Style, Forged Brass Body, Full Port, Fluorocarbon Softgoods, Import
LEGEND Ball Valve, Traditional, Series: S-1001, 2 in Nominal, C, 600 psi CWP, 161.77 gpm, Full Port, 1.97 in Orifice, Polished Chrome Forged Brass Ball, 6.1 in Inlet to Outlet Length, 3.07 in Top to Inlet Center, Forged Brass Body, Polished Chrome Forged Brass Stem and TFM PTFE Seat Trim, Fluorocarbon, Import
Documents
- Durable forged brass body
- Bottom loaded Blow-out proof stem
- Maintenance-free dual O-Ring stem seal
- Improved Dyneon® TFM PTFE seats
- Dyneon TFM is a registered trademark of 3M company
- 1/8 to 2 in 600 psi cold working pressure
- 150 psi saturated steam
- CSA certified for use with natural, manufactured, mixed, liquid petroleum and LP gas/air mixtures
- FKM is a registered trademark of DuPont company
- The CV factor is the gallons of water per minute passed through the valve with a 1 psi pressure drop
- CSA certified 3-88 for use in 2 or 5 lb house piping systems
- Factory mutual approved for fire protection service
- Fluorocarbon O-ring
- Standard/Approvals: ANSI B16.18/Z21.15/B16.33|ASME B16.18/B16.33|ASTM B124/124M UNS C37700/A510 UNS G10060|CSA Certified|FM Approved|UL listed 44R8/757X
LEGEND Ball Valve, Traditional, Series: S-1001, 2 in Nominal, C, 600 psi CWP, 161.77 gpm, Full Port, 1.97 in Orifice, Polished Chrome Forged Brass Ball, 6.1 in Inlet to Outlet Length, 3.07 in Top to Inlet Center, Forged Brass Body, Polished Chrome Forged Brass Stem and TFM PTFE Seat Trim, Fluorocarbon, Import
- Brand:Â LEGENDBall Material:Â Polished Chrome Forged BrassBody Material:Â Forged BrassDomestic/Import:Â ImportEnd Style:Â CFlow Rate:Â 161.77Inlet to Outlet Length:Â 6.1Nominal Size:Â 2Orifice Size:Â 1.97Port Type:Â FullPressure Rating:Â 600 psi CWPSeries:Â S-1001Softgoods Material:Â FluorocarbonTop to Inlet Center:Â 3.07Trim Material:Â Polished Chrome Forged Brass Stem and TFM PTFE SeatType:Â Traditional
LEGEND 101-048 S-1001 Traditional Ball Valve, 2 in Nominal, C End Style, Forged Brass Body, Full Port, Fluorocarbon Softgoods, Import
LEGEND Ball Valve, Traditional, Series: S-1001, 2 in Nominal, C, 600 psi CWP, 161.77 gpm, Full Port, 1.97 in Orifice, Polished Chrome Forged Brass Ball, 6.1 in Inlet to Outlet Length, 3.07 in Top to Inlet Center, Forged Brass Body, Polished Chrome Forged Brass Stem and TFM PTFE Seat Trim, Fluorocarbon, Import
