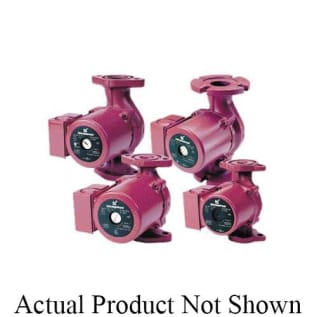

Grundfos 52722370 UP Series Canned Rotor Circulator Pump, 20.4 gpm Flow Rate, 115 VAC, 1 Phase
Grundfos, 52722370, Circulator Pump, Canned Rotor, Series: UP Series, 20.4 gpm Flow Rate, 24.94 ft Maximum Head, 215 W Power, 115 VAC, 2.15 A, 60 Hz Frequency, 1 ph, 145 psi Maximum, Composite PES Impeller, 140 deg F, Radial/Thrust Bearing, 6-11/16 in W x 8-1/2 in H Dimensions
- Ceramic shaft, radial bearings and carbon thrust bearing
- Stainless steel rotor can and bearing plate
- Impeller of corrosion-resistant material
- No additional motor protection is required
- Non-electronically controlled circulator pumps for domestic building with speed control
- Flange pipe connection
- Bronze pump housing
- Large stator
- 1-speed motor
- Standard/Approvals: CSA Certified|UL Listed
- INCLUDES: 85904401 Motor
Grundfos, 52722370, Circulator Pump, Canned Rotor, Series: UP Series, 20.4 gpm Flow Rate, 24.94 ft Maximum Head, 215 W Power, 115 VAC, 2.15 A, 60 Hz Frequency, 1 ph, 145 psi Maximum, Composite PES Impeller, 140 deg F, Radial/Thrust Bearing, 6-11/16 in W x 8-1/2 in H Dimensions
The Grundfos circulator pumps, Series UP are specifically designed for heating systems. The pumps are also suitable for circulation of hot domestic water and for circulation of liquid in cooling and air conditioning systems.
- Brand:Â GrundfosAmperage Rating:Â 2.15Bearing Type:Â Radial/ThrustDimensions:Â 6-11/16 in W x 8-1/2 in HFlow Rate:Â 20.4Frequency Rating:Â 60Impeller Type:Â Composite PESMaximum Head:Â 24.94Maximum Pressure:Â 145Power Rating:Â 215Series:Â UP SeriesTemperature Rating:Â 140Type:Â Canned RotorVoltage Rating:Â 115Phase:Â 1
