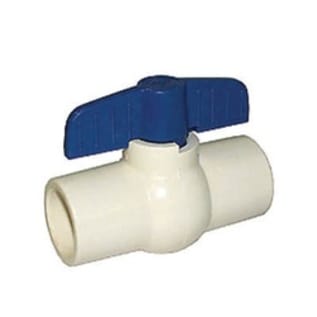

LEGEND 202-406 S-605 Compact Miniature Ball Valve, 1-1/4 in Nominal, Solvent End Style, CPVC Body, Full Port, EPDM Softgoods, Import
LEGEND Miniature Ball Valve, Compact, Series: S-605, 1-1/4 in Nominal, Solvent, 150 psi, 180 deg F, Full Port, Media: Oil/Water, T-Handle Actuator, CPVC Ball, 4.19 in Inlet to Outlet Length, CPVC Body, CPVC Stem and Dupont PTFE Seat Trim, EPDM, Bone, 3.68 in H, Import
Documents
- Large ports allow maximum flow and minimum pressure drop or turbulence
- Ball valves are constructed of ASTM D1784 virgin CPVC resin
- Severe shock loads and stress are absorbed by the valve body, not the ball and seats thereby minimizing the chance of uneven wear and leakage
- Compact-pattern molded-in-place body design
- Low torque, durable PTFE seats and in-line, one way flow style
- EPDM seal
- Standard/Approvals: ASTM D 2846|ASTM F 1970 Compliance|NSF/ANSI 61 Annex G Certified
- WARRANTY: 5/25 Years
LEGEND Miniature Ball Valve, Compact, Series: S-605, 1-1/4 in Nominal, Solvent, 150 psi, 180 deg F, Full Port, Media: Oil/Water, T-Handle Actuator, CPVC Ball, 4.19 in Inlet to Outlet Length, CPVC Body, CPVC Stem and Dupont PTFE Seat Trim, EPDM, Bone, 3.68 in H, Import
Legend offers more than 9,000 products representing 80 plus product classes designed for residential, commercial and industrial applications. Everything you many need for behind the wall, Legend has the most expansive offering of valves, fittings, tubing and components for plumbing and hydronic systems.
- Brand:Â LEGENDActuator Type:Â T-HandleBall Material:Â CPVCBody Material:Â CPVCColor:Â BoneDimensions:Â 3.68 in HDomestic/Import:Â ImportEnd Style:Â SolventInlet to Outlet Length:Â 4.19Media:Â Oil/WaterNominal Size:Â 1-1/4Port Type:Â FullPressure Rating:Â 150Series:Â S-605Softgoods Material:Â EPDMTemperature Rating:Â 180Trim Material:Â CPVC Stem and Dupont PTFE SeatType:Â Compact
