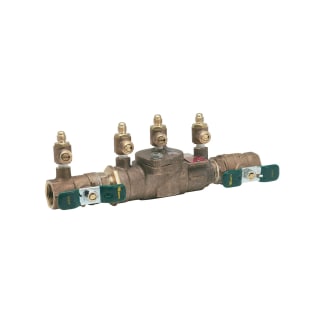

WATTS® 0062020 007 Inline Double Check Valve Assembly, 3/4 in Nominal, Female Threaded NPT End Style, Quarter-Turn Ball Valve, Bronze Body, 7.5 fps Flow Rate, Domestic
WATTS®, 0062020, Double Check Valve Assembly, Inline, Series: 007, 3/4 in Nominal, Female Threaded NPT End Style, 175 psi Pressure, 33 to 180 deg F, 7.5 fps Flow Rate, Quarter-Turn Ball Valve Ball Valve/Gate Valve, Media: Water, Bronze Body, 11-1/8 in L x 4 in H Dimensions, Domestic
Documents
- Bronze body for durability
- Ease of maintenance only one cover
- Replaceable seats and seat discs
- Quarter turn ball valve shutoffs
- Cast bronze construction
- Top mounted resilient seated test cocks
- Modular compact design
- Low pressure drop
- Standard/Approvals: Approved By The Foundation For Cross-Connection Control And Hydraulic Research At The University Of Southern California|ASSE 1015|AWWA C510|CSA B64.5|IAPMO PS31|UPC Listed | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
- INCLUDES: (4) Test Cocks, Tee Handle, (2) Positive Seating Check Modules With Captured Springs and Rubber Seat Discs
- WARRANTY: 1 Year Limited
WATTS®, 0062020, Double Check Valve Assembly, Inline, Series: 007, 3/4 in Nominal, Female Threaded NPT End Style, 175 psi Pressure, 33 to 180 deg F, 7.5 fps Flow Rate, Quarter-Turn Ball Valve Ball Valve/Gate Valve, Media: Water, Bronze Body, 11-1/8 in L x 4 in H Dimensions, Domestic
Series 007 Double Check Valve Assemblies prevent the backflow of contaminated water into the potable water supply. It consists of a bronze body construction that is easy to maintain and service. Series 007 is ideal at referenced cross-connections identified as non-health hazard applications. Check with local inspection authorities for installation requirements.
- Brand: WATTS®Ball Valve/Gate Valve type: Quarter-Turn Ball ValveBody Material: BronzeDimensions: 11-1/8 in L x 4 in HDomestic/Import: DomesticNominal Size: 3/4Pressure Rating: 175Series: 007Temperature Rating: 33 to 180
WATTS® 0062020 007 Inline Double Check Valve Assembly, 3/4 in Nominal, Female Threaded NPT End Style, Quarter-Turn Ball Valve, Bronze Body, 7.5 fps Flow Rate, Domestic
WATTS®, 0062020, Double Check Valve Assembly, Inline, Series: 007, 3/4 in Nominal, Female Threaded NPT End Style, 175 psi Pressure, 33 to 180 deg F, 7.5 fps Flow Rate, Quarter-Turn Ball Valve Ball Valve/Gate Valve, Media: Water, Bronze Body, 11-1/8 in L x 4 in H Dimensions, Domestic
