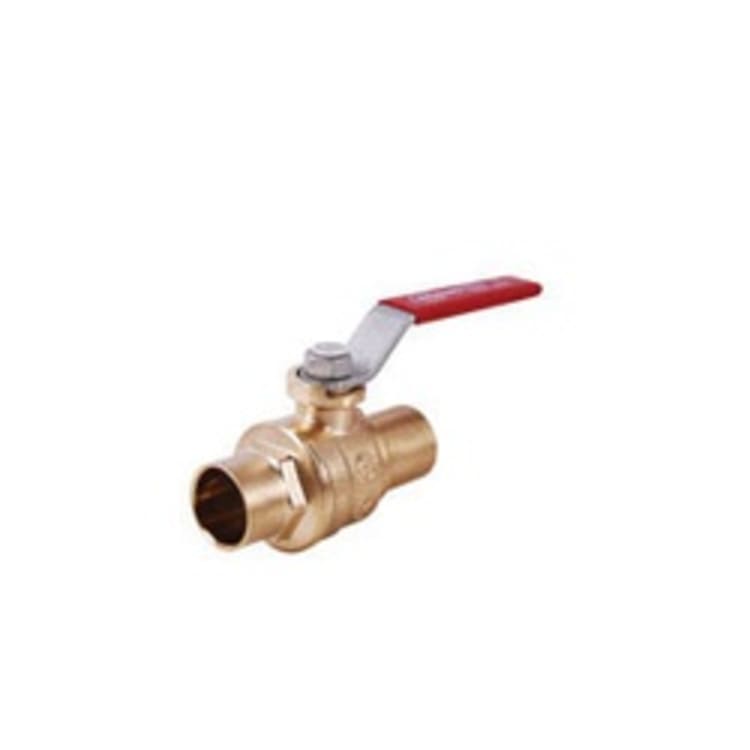

LEGEND 101-045 S-1001 Traditional Ball Valve, 1 in, C, Forged Brass Body, Full Port, Import

3531 MFG #: 101-045
$25.85 / ea
  • Actuator Type: Handle
  • Ball Material: Chrome Plated Forged Brass
  • Body Material: Forged Brass
  • Brand: LEGEND
  • Domestic/Import: Import
  • End Style: C
  • Inlet to Outlet Length: 3.82 in
  • Manufacturer: Legend
  • Nominal Size: 1 in
  • Orifice Size: 1 in
  • Port Type: Full
  • Pressure Rating: 600 psi CWP
  • Series: S-1001
  • Softgoods Material: TFM PTFE Seat
  • Top to Inlet Center: 2.05 in
  • Trim Material: Chrome Plated Forged Brass
  • Type: Traditional

LEGEND Ball Valve, Traditional, Series: S-1001, 1 in Nominal, C, 600 psi CWP, Full Port, 1 in Orifice, Handle Actuator, Chrome Plated Forged Brass Ball, 3.82 in Inlet to Outlet Length, 2.05 in Top to Inlet Center, Forged Brass Body, Chrome Plated Forged Brass Trim, TFM PTFE Seat, Import

QTY
  • Features
  • Durable forged brass body
  • Bottom-loaded blowout-proof stem
  • Maintenance-free dual o-ring stem seal
  • Improved dyneon TFM PTFE seats
  • Dyneon TFM is a registered trademark of 3M company
  • 1/8 to 2 in 600 psi cold working pressure
  • 150 psi saturated steam
  • CSA certified for use with natural, manufactured, mixed, liquid petroleum and LP gas/air mixtures
  • FKM is a registered trademark of DuPont company company
  • The CV factor is the gallons of water per minute passed through the valve with a 1 psi pressure drop
  • CSA certified 3-88 for use in 2 or 5 lb house piping systems
  • Factory mutual approved for fire protection service (1/2- 2 in)
  • Standard/Approvals: ANSI B16.18/Z21.15/B16.33, ASME B16.18/B16.33, ASTM B124/124M UNS C37700/A510 UNS G10060, CSA Certified, FM Approved, ISO 9002, UL listed 44R8/757X
