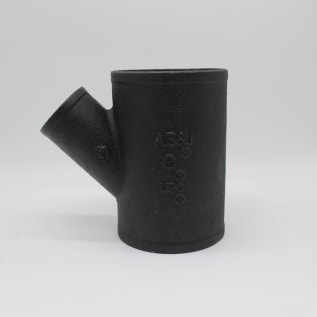

Tyler Pipe 008248 Pipe Wye-Branch, 4 x 2 in, No Hub, Cast Iron

2949 MFG #: 008248
$50.70 / ea
  • Dimensions: 1 in Center to End Inlet, 6 in Center to End Outlet
  • End Style: No-Hub
  • Fitting/Connector Type: Wye
  • Length: 6-5/8
  • Material: Cast Iron
  • Nominal Size: 4 x 4 x 2
  • Pressure Rating: 4.3
  • Temperature Rating: 212
  • Thickness: 0.16

Tyler Pipe Pipe Wye-Branch, Fitting/Connector Type: Wye-Branch, 4 x 2 in Nominal Size, No Hub, 0.16 in Thickness, 6-5/8 in Length, 4.3 psi, Cast Iron, 212 deg F, 1 in Center to End Inlet, 6 in Center to End Outlet

All 1-1/2 in diameter and larger cast iron soil pipe and fittings for above and below grade soil, waste, vent lines, rain water conductors and storm drainage lines shall bear the registered insignia NO HUB® indicating that these items used in the sanitary system comply with the Cast Iron Soil Pipe Institute Standards 301 or ASTM A888. Tyler Pipe Company strongly recommends that its hubless cast iron pipe and fittings be joined with shielded couplings manufactured in accordance with CISPI 310. The use of unshielded couplings or any coupling not meeting the above specifications will void the product warranty.

  • Features
  • Standard/Approvals: ASTM A888, CISPI 301
