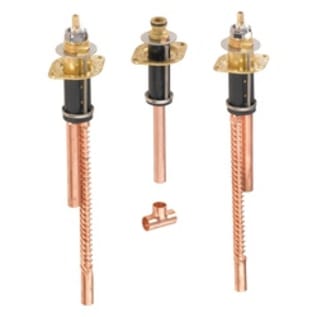

DELTA® R2707 Roman Tub Rough, 18 gpm, 8 to 16 in

273256 MFG #: R2707
/ ea

DELTA® Roman Tub Rough, 18 gpm, 8 to 16 in Center Distance, 3 Faucet Holes, 2-1/4 in Maximum Deck Thickness, Washerless Stem Valve/Cartridge Type, Brass

  • Features
  • Roman tub rough-in installation kit
  • Self-locating basis
  • Tighten/adjust from above the deck
  • 5/8 in O.D. copper supply inlet tubes
  • 5/8 in O.D. corrugated copper supply outlet tubes
  • Widespread 16 in (406 mm) maximum centers without using additional tubing
  • Flexible deck or ledge mount installation
  • Solid fabricated brass end valves and spout body
  • Control mechanism shall be of the rotating cylinder type with ceramic plate and 180 deg rotation, with replaceable ceramic seats operating in stainless steel lined sockets
  • Hot and cold stems are interchangeable
  • Temperature and volume controlled with handles
  • All operating parts shall be replaceable from the top
  • 18 gpm at 60 psi
  • Standard/Approvals: ASME A112.18.1, CSA B125.1
  • WARRANTY: Limited Lifetime
